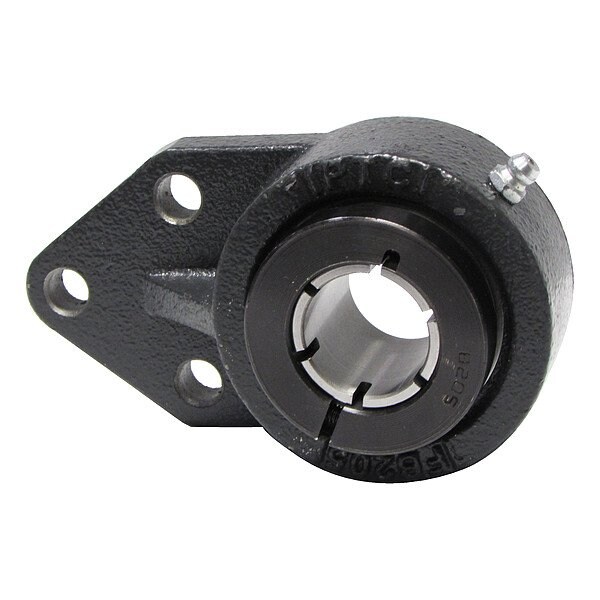

3 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 3/4 in Dia, Cast Iron, Concentric Locking Collar
Mfr # CLFB204-12
Zoro # G712006601
product price:Â
$
74.85
/ea
Key Features
System of Measurement
Inch
Housing Type
Flange Bracket
Number of Mount Holes
3
Bearing Insert Type
Radial Ball
Shaft Locking Type
Concentric Locking Collar
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CLFB204-12
- Zoro #
- G712006601
- UPC #
- -
- Country of Origin
- China
Dimensions
- Bore Diameter
- 3/4 in
- Mount Hole Center-to-Center Length
- 1-1/2 in
- Overall Length
- 2-33/64 in
- Overall Width
- 2-1/2 in
- Overall Height
- 4-1/4 in
- Flange Thickness
- 19/64 in
- Mount Hole Center-to-Center Height
- 7/8 in
- Mounting Bolt Size
- 5/16, M8
- Mount Hole Size
- 0.4 in
- Wire Rope Length
- 2 33/64 in
- Center Height
- 42.9 mm
- Inner Ring Width
- 1.279 in
- Bolt Circle Diameter
- 10 mm
- Length
- 2 33/64 in
Description
Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Center Height 42.9 mm, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Triangular, Included Bearing CL204-12, Lubricant Material NLGI #2 Equivalent, Maximum Speed 6,500 RPM Grease, Maximum Temperature 248 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height 7/8 in, Number of Mount Holes 3
