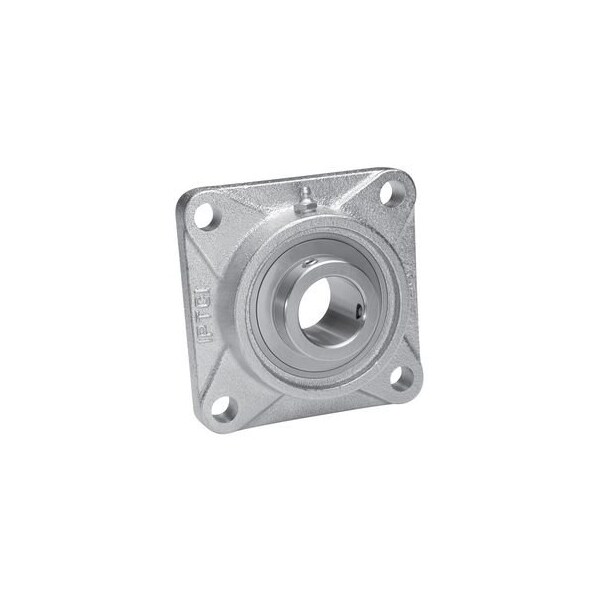

4-Bolt Flange Ball Bearing Mounted Unit
Mfr # CUCNPF215-48
Zoro # G523387654
product price:Â
$
675.99
/ea
Free Shipping & Returns
Key Features
Shaft Locking Type
Set Screw
Bore Diameter
3 in
Overall Width
79 mm
Finish
Nickel Plated
Lubricant Material
H-1 Food Grade Grease
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CUCNPF215-48
- Zoro #
- G523387654
- UPC #
- 080067573967
- Country of Origin
- China
Dimensions
- Bore Diameter
- 3 in
- Overall Width
- 79 mm
- Overall Length
- 200 mm
- Bolt Circle Diameter
- 19 mm
- Overall Height
- 200 mm
- Flange Thickness
- 22 mm
- Mounting Bolt Size
- 11/16, M20
- Inner Ring Width
- 3.063 in
- Mount Hole Center-to-Center Length
- 159 mm
- Length
- 200 mm
Description
Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Type Square, Included Bearing CUC215-48, Lubricant Material H-1 Food Grade Grease, Maximum Speed 2,100 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -10 Degrees F, Mount Hole Center-to-Center Height Not Applicable
