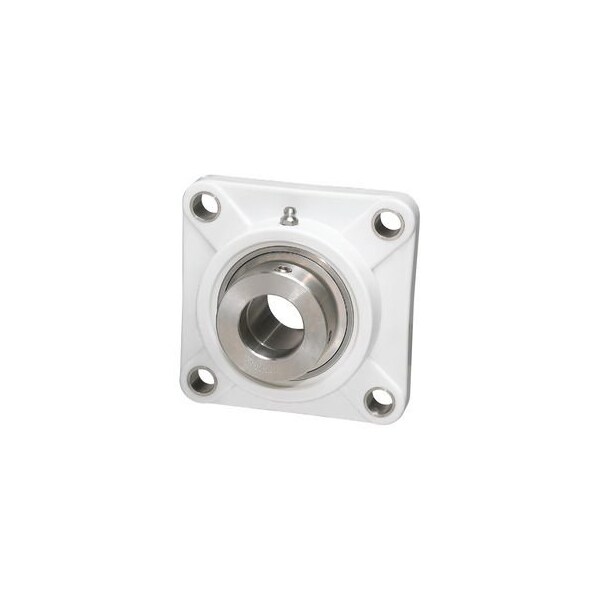

4-Bolt Flange Ball Bearing Mounted Unit

  • Mfr # SNATF208-24

  • Zoro # G023389325

product price:
$
300.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type
Eccentric Collar
Housing Material
Thermoplastic
Bore Diameter
1-1/2 in
Overall Width
58 mm
Closure
Double Sealed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SNATF208-24
Zoro #
G023389325
UPC #
080067573721
Country of Origin
China
Shaft Locking Type
Eccentric Collar
Housing Material
Thermoplastic
Closure
Double Sealed
Series
SNATF
Lubricant Material
H-1 Food Grade Grease
Temp. Range
250 Degrees F Max
System of Measurement
Inch
Number of Mount Holes
4
Item
4 Bolt Flange Bearing
Bearing Insert Type
Radial Ball
Number of Rows
1
Minimum Temperature
-10 Degrees F
For Environment
Food and Beverage
Self Lubricating Bearing
No
Lubrication Openings
Grease Fitting
Included Bearing
SNA208-24
Bearing Insert Material
Stainless Steel
Split Housing
Not Split
Dynamic Load Capacity
5,660 lbf
Internal Clearance
CN
Features
Standard Duty
Resistance Properties
Corrosion-Resistant
Bore Type
Cylindrical
Application
Agricultural/Fertilizer, Chemical Processing, Food & Beverage, Marine, Medical Equipment, Pharmaceutical Industry, Water & Waste Treatment
Static Radial Load Capacity
3,300 lbf
Standards
AFBMA
Seal Type
B-Type
Includes Bearing Cap
Bearing Cap Not Included
Load Direction
Radial
Housing Type
Square
Expansion Type
Fixed
Maximum Speed
3,750 RPM Grease
Bearing Lubrication
Relubricateable
Maximum Temperature
250 Degrees F

Description

Flange Mount Bearing, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/2 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Polymer, Housing Type Square, Included Bearing SNA208-24, Lubricant Material H-1 Food Grade Grease, Maximum Speed 3,750 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -10 Degrees F
