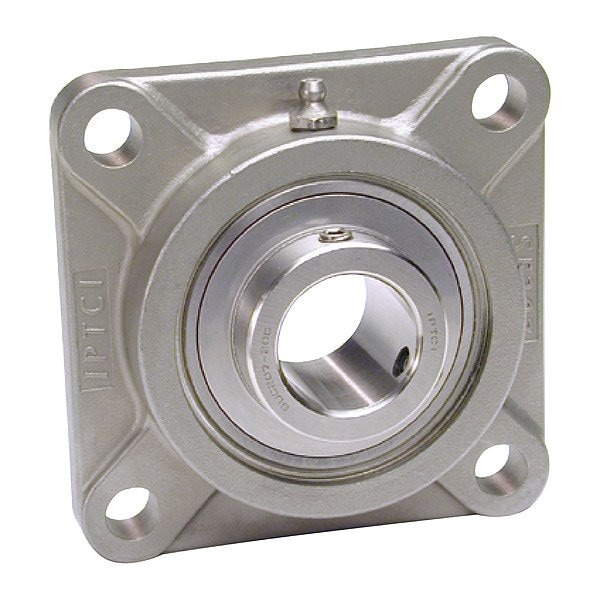

4 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 1-5/16 in Dia, Stainless Steel, Set Screw
Mfr # SUCSF207-21
Zoro # G712006571
product price:Â
$
369.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Housing Type
Flange Bracket
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SUCSF207-21
- Zoro #
- G712006571
- UPC #
- -
- Country of Origin
- China
Dimensions
- Bore Diameter
- 1-5/16 in
- Mount Hole Center-to-Center Length
- 3-5/8 in
- Overall Length
- 4-37/64 in
- Overall Width
- 1-3/4 in
- Overall Height
- 4-37/64 in
- Flange Thickness
- 19/32 in
- Inner Ring Width
- 1.689 in
- Mounting Bolt Size
- 7/16, M12
- Mount Hole Size
- 33/64 in
- Mount Hole Center-to-Center Height
- 3 5/8 in
- Back Side to Center Width
- 0.75 in
- Wire Rope Length
- 4 37/64 in
- Bolt Circle Diameter
- 13 mm
- Length
- 4 37/64 in
Description
Flange Mount Bearing, Back Side to Center Width 0.75 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 5/16 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC 207-21, Lubricant Material Mobil FM222, Maximum Speed 4,300 RPM Grease, Maximum Temperature 250 Degrees F
