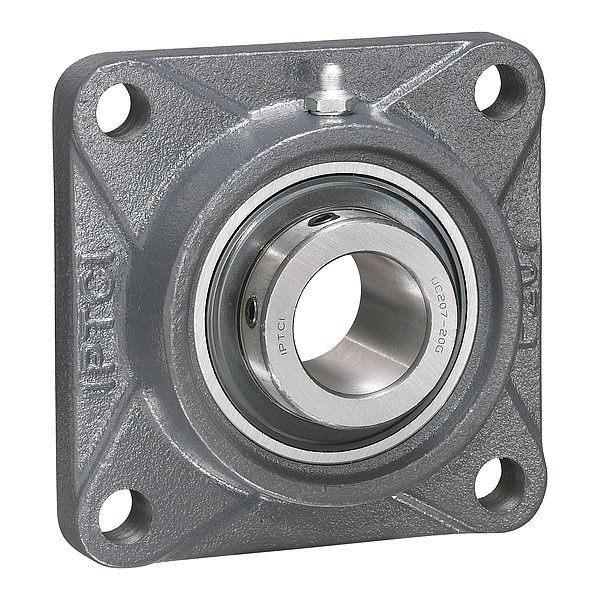

4 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 45 mm Dia, Set Screw
Mfr # HUCF209-45MM
Zoro # G012006530
product price:Â
$
119.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Metric
Housing Type
Flange Bracket
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HUCF209-45MM
- Zoro #
- G012006530
- UPC #
- -
- Country of Origin
- China
Dimensions
- Bore Diameter
- 45 mm
- Mount Hole Center-to-Center Length
- 105 mm
- Overall Length
- 137 mm
- Overall Width
- 52.2 mm
- Overall Height
- 137 mm
- Flange Thickness
- 16 mm
- Wire Rope Length
- 137 mm
- Mounting Bolt Size
- 9/16, M14
- Bolt Circle Diameter
- 16 mm
- Length
- 137 mm
Description
Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 45 mm, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, For Environment Extreme High Temperature, Housing Material Cast Iron, Housing Type Square, Included Bearing HUC209-45MM, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 3,400 RPM Grease, Maximum Temperature 450 Degrees F, Minimum Temperature -45 Degrees F
