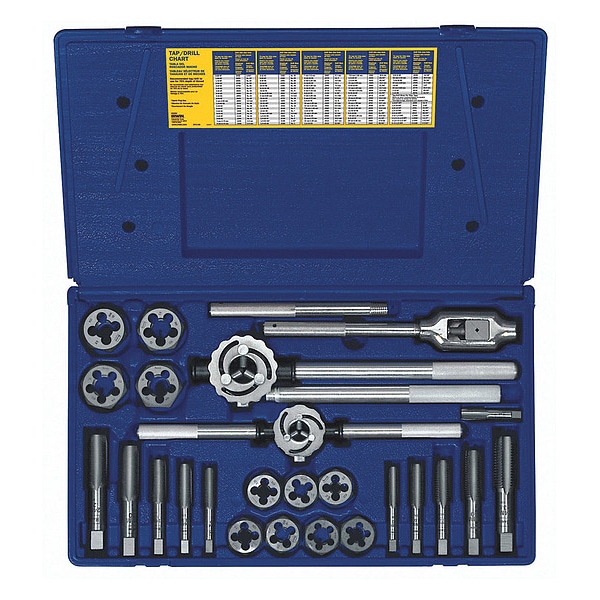

25 Pc. Metric Tap AND Hex Die Set
- Mfr # 97311
- Zoro # G0968871
product price:Â
$
746.99
/ea
Free Shipping & Returns
Key Features
Die Shape
Hex
Thread Sizes Included
M14x1.25, M14x1.5, M14x2, M16x1.5, M16x2, M18x1.5, M18x2.5, M20x2.5, M22x1.5, M24x2, M24x3
Max. Tap Thread Size
M24x3
Die Thread Sizes Included
M14 x 1.25, M14 x 1.50, M14 x 2.00, M16 x 1.50, M16 x 2.00, M18 x 1.50, M18 x 2.50, M20 x 2.50, M22 x 1.50, M24 x 2.00, M24 x 3.00
Tap Sizes Included
M14 x 1.25, M14 x 1.50, M14 x 2.00, M16 x 1.50, M16 x 2.00, M18 x 1.50, M18 x 2.50, M20 x 2.50, M22 x 1.50, M24 x 2.00, M24 x 3.00
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 97311
- Zoro #
- G0968871
- UPC #
- -
- Country of Origin
- United States
- Item
- Tap and Die Set
- Die Shape
- Hex
- Material - Machining
- High Speed Steel
- Thread Pitch
- 1.25mm, 1.50mm, 2.00mm, 2.50mm, 3.00mm
- Case Type
- Plastic
- Thread Direction
- Right Hand
- Tap Wrench Number
- 12498
- Number of Dies in Set
- 11
- Number of Pieces
- 25
- Thread Type
- Metric
- Number Of Taps
- 11
- Tap Chamfer
- Plug
- Number of Flutes
- 4
- Tap Material
- Carbon Steel
- Thread Standard
- Metric
- Die Material
- High Speed Steel
- Die Material Grade
- Carbon Steel
- Tap Series
- Hanson
- Number of Dies Included
- 11
- Die Finish
- Bright (Uncoated)
- Tap Style
- Straight Flute
- Tap Finish
- Bright (Uncoated)
- Die Type
- Solid
Dimensions
- Thread Sizes Included
- M14x1.25, M14x1.5, M14x2, M16x1.5, M16x2, M18x1.5, M18x2.5, M20x2.5, M22x1.5, M24x2, M24x3
- Max. Tap Thread Size
- M24x3
- Die Thread Sizes Included
- M14 x 1.25, M14 x 1.50, M14 x 2.00, M16 x 1.50, M16 x 2.00, M18 x 1.50, M18 x 2.50, M20 x 2.50, M22 x 1.50, M24 x 2.00, M24 x 3.00
- Tap Sizes Included
- M14 x 1.25, M14 x 1.50, M14 x 2.00, M16 x 1.50, M16 x 2.00, M18 x 1.50, M18 x 2.50, M20 x 2.50, M22 x 1.50, M24 x 2.00, M24 x 3.00
- Die Hex Size
- 1 7/16 in, 1 13/16 in
- Min. Tap Thread Size
- M14-1.25
- Max. Die Thread Size
- M24x3
- Drill Bit Size
- 1/2 in, 11/16 in, 13/16 in, 15/32 in, 21/32 in, 35/64 in, 37/64 in, 39/64 in, 53/64 in, 7/8 in
- Min. Bore Dia.
- 14 mm-1.25
- 55% Thread Drill Size
- 12.50mm, 12.90mm, 14.50mm, 14.90mm, 16.20mm, 16.90mm, 18.20mm, 20.90mm, 22.50mm, 55/64 in
- 65% Thread Drill Size
- 1/2 in, 14.70mm, 20.75mm, 21/32 in, 27/32 in, 31/64 in, 45/64 in, 5/8 in, 7/8 in, 9/16 in
- 75% Thread Drill Size
- 12.00mm, 12.50mm, 14.00mm, 14.50mm, 15.50mm, 16.50mm, 17.50mm, 20.50mm, 22.00mm, 53/64 in
Description
Tap and Die Set, Number of Pieces 25, Die Shape Hex, Die Material Carbon Steel, Thread Sizes Included M14x1.25, M14x1.5, M14x2, M16x1.5, M16x2, M18x1.5, M18x2.5, M20x2.5, M22x1.5, M24x2, M24x3, Die Thread Sizes Included M14 x 1.25, M14 x 1.50, M14 x 2.00, M16 x 1.50, M16 x 2.00, M18 x 1.50, M18 x 2.50, M20 x 2.50, M22 x 1.50, M24 x 2.00, M24 x 3.00, Number Of Taps 11, Number of Dies in Set 11, Thread Standard Metric
