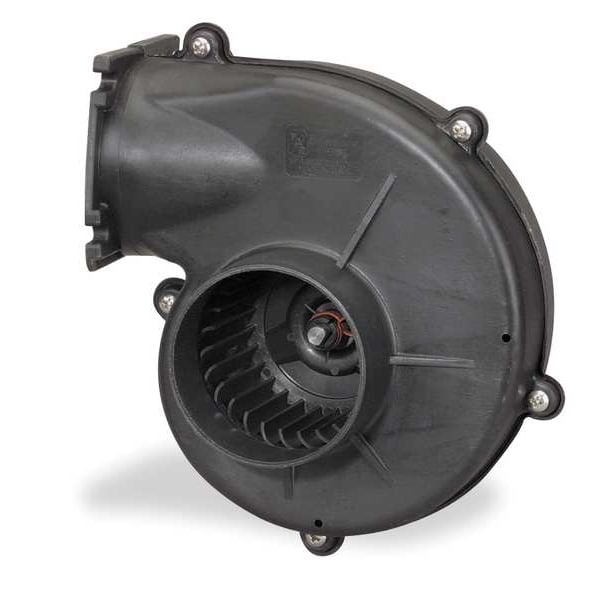

Jabsco Round OEM Blower, 2870 RPM, 1 Phase, Direct Drive, Plastic 34744-7000 - main

Round OEM Blower, 2870 RPM, 1 Phase, Direct Drive, Plastic

  • Mfr # 34744-7000

  • Zoro # G2202697

product price: $163.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct Drive
Full Load Amps
0.70
Housing Material
Plastic
Inlet Dia.
3 in
Overall Height
7 5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
34744-7000
Zoro #
G2202697
UPC #
094701373440
Country of Origin
Mexico

Dimensions

Inlet Dia.
3 in
Overall Height
7 5/8 in
Overall Width
7 in
Blower Wheel Diameter
3 1/4 in
Lead Length
13 in
Outlet Dia.
2 5/8 in
Overall Depth
6 5/8 in
Blower Wheel Width
1 15/16 in
Wheel Width
1 15/16 in
Inlet Diameter
3 in
Outlet Diameter
2 5/8 in
Wheel Diameter
3 1/4 in

Details

Drive Type
Direct Drive
Full Load Amps
0.70
Housing Material
Plastic
Phase
1
Blower Item
Plastic Blower
Blower Outlet Shape
Round
With Flange
Yes
Blower Motor Type
Shaded Pole
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Bearing Type
Sleeve
Motor Enclosure
Open Dripproof
CFM @ 0.600-In. SP
14
CFM @ 0.400-In. SP
56
CFM @ 0.000-In. SP
100
Hz
60
Item
OEM Blower
Max. Ambient Temp.
130 Degrees F
Max. Inlet Temp.
104 Degrees F
Agency Compliance
NMMA
CFM @ 0.200-In. SP
75
RPM
2870
Mounting Position
Shaft Horizontal
Wheel Type
Forward-Curved
Airflow @ 0.400 in SP
56 cfm
Includes Motor
Yes
Current
0.7 A
Motor Duty Class
Intermittent
Outlet Shape
Round
Electrical Connection
Wire Leads
Nameplate Voltage
115V AC
Assembly
Assembled
Standards
NMMA
Resistance Properties
Corrosion Resistant
Flange Type
Flanged
Motor Type
Shaded Pole
Maximum Inlet Air Temperature
104 Degrees F
Thermal Overload Protection
Yes
Maximum Ambient Temperature
130 Degrees F
Motor Speed
2,870 RPM
Frequency
60 Hz
Includes Drive Package
Yes
Mounting Orientation
Horizontal
Number of Inlets
1
Features
Low Current Draw, and Slip-On Inlet Ducting Connection
Maximum Fan Speed
2,870 RPM
Wheel Material
Plastic
Corrosion Resistant
Yes
Application
Emergency Backup Ventilation Portable Equipment, Marine, Motor, Recreational Vehicles
Airflow @ 0.000 in SP
100 cfm
OEM Replacement
No
Type
Flange Mount
Voltage
115
Mounting
Shaft Horizontal

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 3 1/4 in, Airflow @ 0.000 in SP 100 cfm, Airflow @ 0.400 in SP 56 cfm
