  9. Round OEM Blower, 4200 RPM, 1 Phase, Direct Drive, Reinforced Plastic

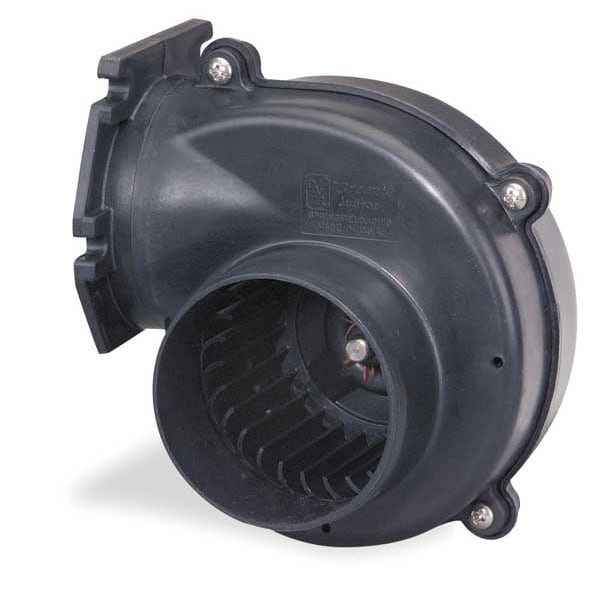

Jabsco Round OEM Blower, 4200 RPM, 1 Phase, Direct Drive, Reinforced Plastic 35115-7020 - main

Round OEM Blower, 4200 RPM, 1 Phase, Direct Drive, Reinforced Plastic

  • Mfr # 35115-7020

  • Zoro # G1124785

product price: $126.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct Drive
Full Load Amps
4.40
Housing Material
Reinforced Plastic
Inlet Dia.
3 in
Overall Height
5 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
35115-7020
Zoro #
G1124785
UPC #
094700851550
Country of Origin
Mexico

Dimensions

Inlet Dia.
3 in
Overall Height
5 1/2 in
Overall Width
6 3/4 in
Blower Wheel Diameter
3 1/4 in
Outlet Dia.
2 3/4 in
Lead Length
13 in
Blower Wheel Width
1 15/16 in
Overall Depth
4 3/4 in
Wheel Width
1 15/16 in
Outlet Diameter
2 3/4 in
Inlet Diameter
3 in
Wheel Diameter
3 1/4 in

Details

Drive Type
Direct Drive
Full Load Amps
4.40
Housing Material
Reinforced Plastic
Phase
1
Blower Item
Plastic Blower
Blower Outlet Shape
Round
With Flange
Yes
Blower Motor Type
DC
Blower Voltage
12V DC
Blower Thermal Protection
No Thermal Protection
Blower Conduit Box
No
Wheel Type
Forward Curve
Max. Inlet Temp.
104 Degrees F
CFM @ 0.400-In. SP
86
Mounting Position
Shaft Horizontal
Hz
60
RPM
4200
Item
OEM Blower
CFM @ 1.000-In. SP
59 cfm
Max. Ambient Temp.
130 Degrees F
CFM @ 0.800-In. SP
69
CFM @ 1.200-In. SP
49 cfm
CFM @ 0.200-In. SP
94
CFM @ 1.600-In. SP
22 cfm
Agency Compliance
NMMA
Bearing Type
Sleeve
CFM @ 0.000-In. SP
105
CFM @ 0.600-In. SP
78
Motor Enclosure
Open Dripproof
Electrical Connection
Wire Leads
Thermal Overload Protection
No
Flange Type
Flanged
Application
Emergency Backup Ventilation Portable Equipment; Marine; Motor; Recreational Vehicles
Mounting Orientation
Horizontal
Outlet Shape
Round
Motor Duty Class
Intermittent
Motor Type
Permanent Magnet DC
Frequency
60 Hz
Maximum Ambient Temperature
130 Degrees F
Maximum Fan Speed
4,200 RPM
Motor Speed
4,200 RPM
Nameplate Voltage
12V DC
Airflow @ 1.000 in SP
59 cfm
Corrosion Resistant
Yes
Wheel Material
Plastic
Airflow @ 0.400 in SP
86 cfm
Standards
NMMA
Maximum Inlet Air Temperature
104 Degrees F
Assembly
Assembled
Includes Drive Package
Yes
Features
Low Current Draw, and Slip-On Inlet Ducting Connection
Number of Inlets
1
Airflow @ 0.000 in SP
105 cfm
Includes Motor
Yes
Current
4.4 A
Resistance Properties
Corrosion Resistant
OEM Replacement
No
Voltage
12VDC
Type
Flange Mount
Mounting
Shaft Horizontal

Description

OEM Blower, Wheel Type Forward Curve, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 3 1/4 in, Airflow @ 0.000 in SP 105 cfm, Airflow @ 0.400 in SP 86 cfm, Airflow @ 1.000 in SP 59 cfm
