48 Model 2095 Grade 1 Rim Latch Panic Exit Device Left Hand Reverse Bevel W/ 'S' Strike 4 Foot Da

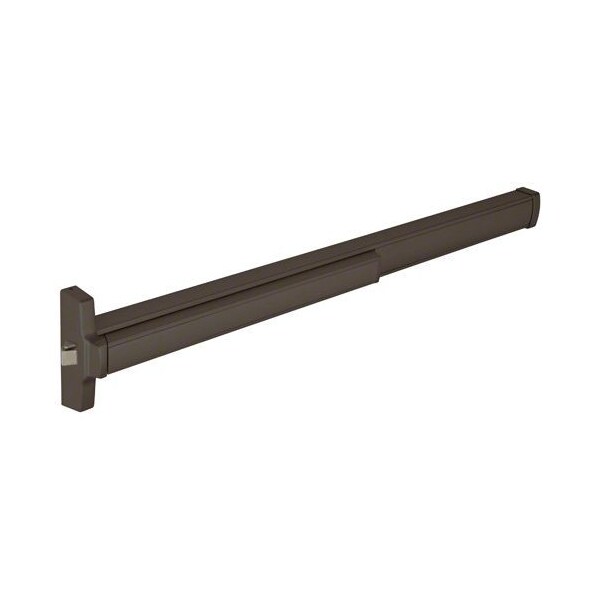

CRL Jackson Model 2095 Rim Latch Panic Devices are UL Listed Certified ANSI 156.3 Grade 1, and manufactured in the Jackson tradition of high quality and durability. They are designed to withstand the rigors of today's world yet remain aesthetically pleasing. Suitable for use with narrow, medium and wide stile aluminum doors, as well as wood and hollow metal doors, these devices are handed - not reversible, and feature concealed easy-to-use push button dogging, a 3/4 19 mm throw deadlocking latch bolt, Soft Touch smooth quiet action push pad, and quick and installation. Available in Dark Bronze and Satin Aluminum anodized finish, this device comes standard with Type 'C' Strike #302436628, and may be ordered with optional Type 'S' Strike #302501628. Keyed entry may be provided by ordering and installing a standard Rim Cylinder such as DL911SCKDA, or a Jackson Outside Lever Trim Model 9500LV using a 1 Mortise Cylinder sold separately. For wood door application order optional Wood Door Mounting Kit #302521.
SPECIFICATIONS:
2095 Rim Device

Requires Rim Cylinder for Keyed Entry

Cylinder Mounting Pad Not Required

3/4 19 mm Throw Deadlocking Latch
MATERIALS:

Body and Push Pad: Extruded Aluminum

Mechanical Components: Stainless and Hardened
Plated Steel

Latch and Strikes: Sintered Steel
