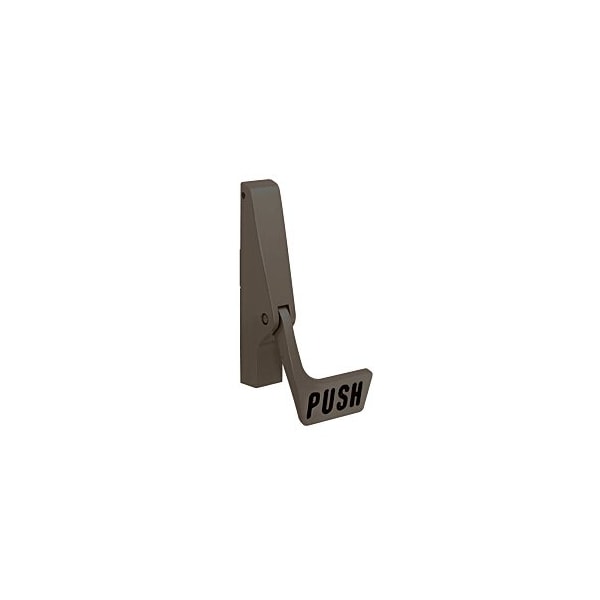

Dark Bronze 10 Series Left-Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device

CRL Jackson Exit Devices are universally recognized as the standard for aluminum storefront hardware. This device is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version, this device is suitable for use with 1-3/4 44.5 mm narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The device is shipped to fit up to 84 2.13 m tall door. Extensions for taller doors are available. The 10 Series Paddle Device is the perfect solution when considering a reliable maintenance free device.
B>SPECIFICATIONS:

Contoured Field Sizeable 48 1.22 m Long Crossbar

Dual Dogging Feature By Outside Cylinder - By Dogging Pins on Panic Housing

Wear Points Insulated by Nylon Sleeves and Rollers
1085 Concealed Vertical Rod Device

Standard Height 84 2.13 m

Requires Mortise Cylinder and No. 30821J
Mounting Pad for Keyed Entry
MATERIALS:

Body and Arms: High Tensile Strength Aluminum

Mechanical Components: Stainless and Hardened Plated Steel

Latch and Strikes: Sintered Steel
