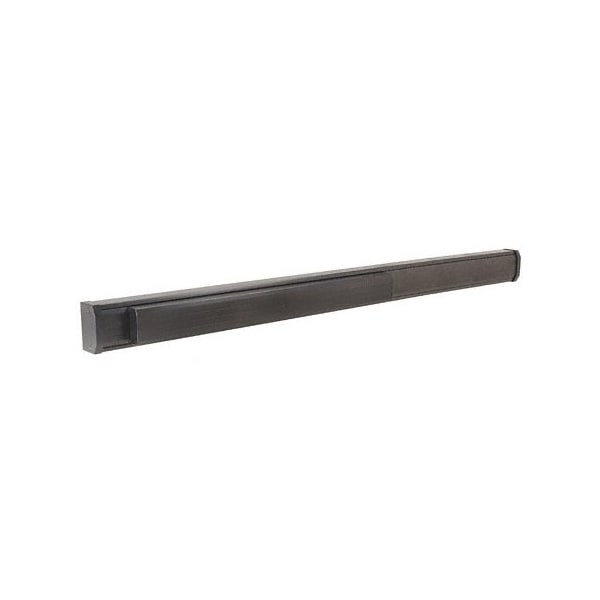

Dark Bronze 48 1285 Push Pad Concealed Vertical Rod Left Hand Reverse Bevel Panic Exit Device

This sleek, contemporary CRL Jackson Concealed Vertical Rod Panic Exit Device is designed for use in 1-3/4 44 mm narrow stile aluminum doors. Also may be used with medium and wide stile aluminum and hollow metal doors. Sized for 48 1.22 m standard openings, but may be trimmed for narrower conditions. Features trigger action locking release and positive 5/8 16 mm top and bottom bolt throw.
SPECIFICATIONS:
1285 Concealed Vertical Rod Device

Stocked in Both 36 and 48 914 mm and 1.22 m Widths

Standard Height 84 2.13 m - Extension Available

Requires Series 30821J Cylinder Mounting Pad When Using Mortise Cylinder for Keyed Outside Entry
MATERIALS:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps
