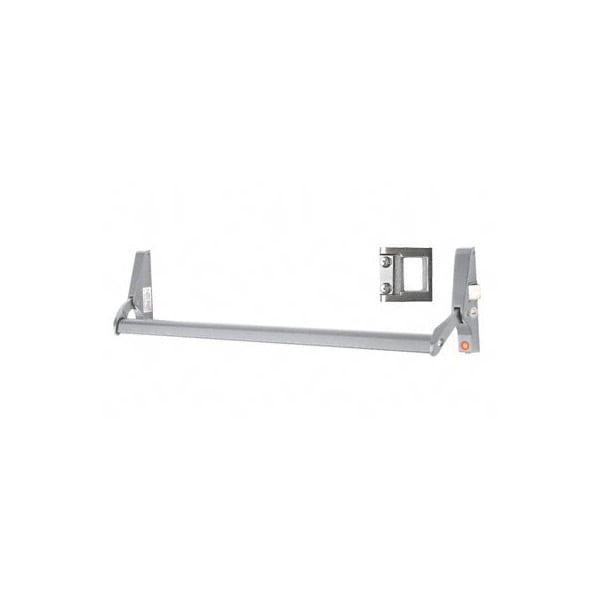

Satin Aluminum 48 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device, 'S' Type Strik

CRL Jackson Exit Devices are universally recognized as the standard for aluminum storefront hardware. This crossbar is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version this device is suitable for use with 1-3/4 44.5 mm narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The 48 1.22 m long contoured crossbar is field sizeable, and the device is shipped to fit up to 84 2.13 m tall door. Extensions for taller doors are available. The 10 Series Exit Device is the perfect solution when considering a reliable maintenance free means to satisfy life safety requirements.
SPECIFICATIONS:

Contoured Field Sizeable 48 1.22 m Long Crossbar

Dual Dogging Feature By Outside Cylinder - By Dogging Pins on Panic Housing

Wear Points Insulated by Nylon Sleeves and Rollers
1095 Rim Device

Requires Rim Cylinder for Keyed Entry

Cylinder Mounting Pad Not Required
MATERIALS:

Body and Arms: High Tensile Strength Aluminum

Mechanical Components: Stainless and Hardened Plated Steel

Latch and Strikes: Sintered Steel
