Shop JAN FAN

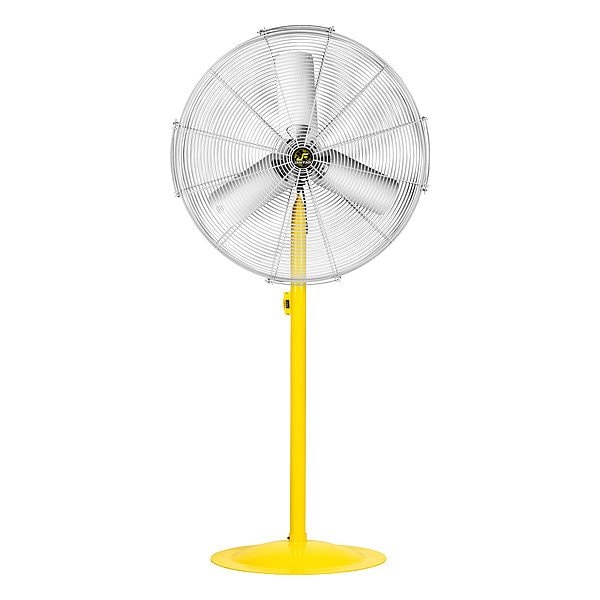

CirculatingFan, 24inDia, Silver, Hardwired

  • Mfr # JF-PF24-DCS-S
  • Zoro # G122587486
product price:
$
1,003.99
/ea
Additional $225.00 delivery surcharge applies per item.
See details

Key Features

RPM
900 RPM, 1,100 RPM
Motor HP
1/4 hp
Air Velocity @ 20 Ft.
175 fpm
Height
30 5/8 in
Wire Guard Finish
Powder Coated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
JF-PF24-DCS-S
Zoro #
G122587486
UPC #
-
Country of Origin
China

Dimensions

Height
30 5/8 in
Blade Diameter
24 in
Depth
24 1/2 in
Height Adjustment
Fixed
Shaft Dia.
1/2 in
Width
30 5/8 in
Fan Cord Length
18 ft
Fits Chest Size
Modular Design for Part Interchangeability, Positive Locking Guard with Quick Release for Safe Access

Details

RPM
900 RPM, 1,100 RPM
Motor HP
1/4 hp
Air Velocity @ 20 Ft.
175 fpm
Wire Guard Finish
Powder Coated
Standards
ETL
Number of Blades
3
For Location
Airport Hangar, Barn, Fitness Center, Manufacturing Plant
Housing Finish
Powder Coated
Head Tilt Adjustment
180 Degrees
Guard Material
Steel
Drive Type
Direct Drive
Number of Conductors
0
Air Velocity @ 10 Ft.
175 fpm
Color
Silver
Fan Power Source
Hardwired
Environmental Applications
Commercial, Industrial
Sound Level
64 dB
Phase
Single
Motor Enclosure
Totally Enclosed Non-Ventilated
Voltage
115V AC
Thermal Protection
Yes
Airflow
3,935 cfm
Air Velocity @ 80 Ft.
100 fpm
Includes
Drop Cord Switch
Fan Shape
Basket
NEMA Plug Configuration
5-15P
Item
Circulating Fan
Motor Insulation
B
Number of Speeds
2
Max. Ambient Temp.
104 Degrees F
Blade Material
Steel
Features
Modular Design for Part Interchangeability, Positive Locking Guard with Quick Release for Safe Access
Guard Color
Silver
Air Velocity @ 60 Ft.
100 fpm
Watts
200/300 W
Air Velocity @ 40 Ft.
150 fpm
Assembly Required
Yes
Hz
60/50 Hz
Amps
2.4/1.2 A
Motor Type
Capacitor-Start
Base Type
Pedestal

Description

Circulating Fan, Fan Mounting Location Floor, Number of Speeds 2, Non-Oscillating, Fan Cord Length 18 ft, Fan Power Source Hardwired, 200/300 W Watts, 900 RPM, 1,100 RPM RPM, Number of Blades 3, 2.4/1.2 A Amps, Height 30 5/8 in, Width 30 5/8 in, 60/50 Hz Hz, Blade Material Steel, Steel, 0, 5-15P, Silver, ETL, Drop Cord Switch

Restrictions

This item has been restricted from sale in the following states: AK, HI
