Shop DAYTON

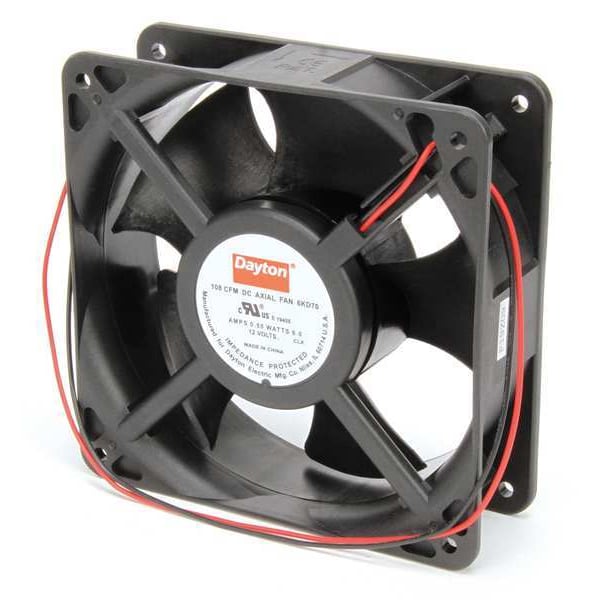

Axial Fan, Square, 12V DC, - Phase, PBT Plastic, 4 11/16 in W.

  • Mfr # 6KD70

  • Zoro # G0594185

product price:  $28.39
/ea

Key Features

Blade Material
Polybutylene Terephthalate
CFM @ 0.000-In. SP
138 cfm
Depth
1 1/2 in
Height
4 11/16 in
Housing Material
Polybutylene Terephthalate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6KD70
Zoro #
G0594185
UPC #
190735366820
Country of Origin
China

Dimensions

Depth
1 1/2 in
Height
4 11/16 in
Width
4 11/16 in
Fan Width
4-11/16"
Fan Width
4-11/16"
Fan Height
4-11/16"
Fan Depth
1-1/2"
Lead Length
12 3/8 in

Details

Blade Material
Polybutylene Terephthalate
CFM @ 0.000-In. SP
138 cfm
Housing Material
Polybutylene Terephthalate
Shape
Square
Watts
10 W
Voltage
12V DC
Mounting Eye O.C. - Fans
4-1/8"
Standards
RoHS Compliant, UL Recognized
dBA
42
Mounting Position
Horizontal/Vertical
Fan dBA
42
Item
Axial Fan
Fan Item
Axial Fan
Max. Ambient Temp.
158 Degrees F
Bearings
Ball
Motor Type
Brushless DC
Fan RPM
3100
Electrical Connections
12" Leads
Fan Shape
Square
Electrical Connection - Fans
Lead Wires
Thermal Protection
Yes
Fan Watts
10.0
Mounting Eye O.C.
4 1/8 in
Amps
0.83 A
Housing Finish
Black Painted
Hz
60/50 Hz
Fan Voltage
12VDC
Motor Insulation
A
IP Rating
IP20
Bearing Type
Ball
Environmental Applications
Equipment Cooling
Color
Black
RPM
3,100 RPM
Motor Design
Brushless DC
Includes Guard
No
Sound Level - Minimum
48 dBA
Removable Base
Permanently Lubricated
Sound Level
48 dBA
Includes Filter
No
Environment Rating
Dry

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 4 1/8 in, Height 4 11/16 in, Depth 1 1/2 in, Width 4 11/16 in, CFM @ 0.000-In. SP 138 cfm, Watts 10 W, Voltage 12V DC, - Hz, 0.83 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 48, IP Rating IP20, Mounting Position Vertical or Horizontal, Bearing Type Ball, 3100 RPM RPM, Motor Design Brushless DC, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F
