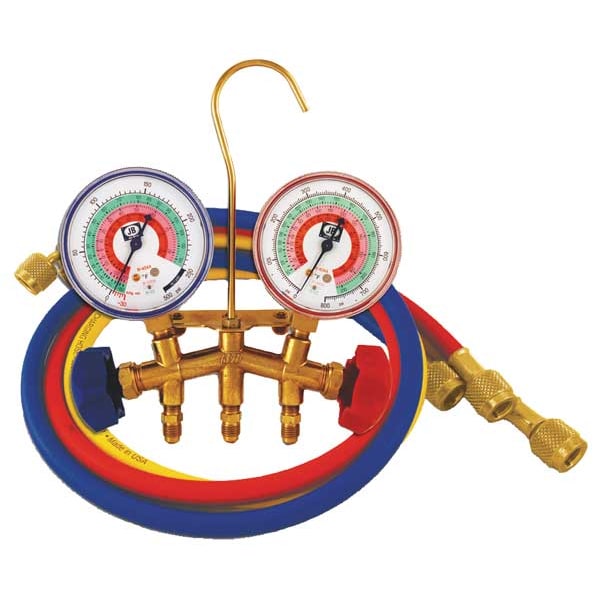

Jb Industries Manifold Gauge, 2-Valve M2-5-410A - main

Manifold Gauge, 2-Valve

  • Mfr # M2-5-410A

  • Zoro # G1061846

product price: $132.99
/ea
Free Shipping & Returns

Key Features

Number of Valves
2
Refrigerant Compatibility
R-22, R-404A, R-410A
Number of Hoses
3
Vacuum Port Size
1/4 in
Gauge Accuracy
+/-3-2-3%
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M2-5-410A
Zoro #
G1061846
UPC #
684520330221
Country of Origin
United States

Dimensions

Vacuum Port Size
1/4 in
Hose Length
5 ft
Overall Width
3 1/2 in
Overall Height
13 in
Vacuum Port Connection Size
1/4 in
Manifold Port Connection Size
1/8 in
Gauge Diameter
2 1/2 in
Overall Depth
9 1/4 in

Details

Item
Manifold Gauge Kit
Number of Valves
2
Refrigerant Compatibility
R-22, R-404A, R-410A
Number of Hoses
3
Gauge Accuracy
+/-3-2-3%
Gauges High Side Red
0 to 800 psi
Features
Free Floating Dual O-Ring Sealing System for Faster Evacuation/Charging, Color Coded Refrigerant Dials for Easy Reading, Pull Out Proof Hanging Hook for Convenience, All Metal Gauges, Plastic Hand Wheels Allow Easy Turning, Replaceable Intake/Hose Fittings for Easy Repair
Material
Brass
Gauges Low Side Blue
30 in Hg to 500 psi
Includes
60 in High Pressure Color Coded Hose Set
For Use With
R-22, R-404A, R-410A
Product Type
Manifold Gauge Kit
Type
Brass
Warranty
1 yr
Series
M2
Body Material
Brass
Vacuum Port Connection Type
SAE
Hose Connection Thread Direction
Right-Hand
Manifold Port Connection Thread Direction
Right-Hand
High Side Display Pressure - Minimum
0 psi
A2L Compatibility
A2L Compatible
High Side Display Pressure - Maximum
800 psi
Includes Vacuum Port
Vacuum Port Included
Display Type
Analog
For Refrigerant Type
R-22, R-404A, R-410A
Accuracy
+/- 3-2-3%
Response Time
Instantaneous
Gauge Type
High Side/Low Side
Calibration Certificate Type
Not Certified
Low Side Display Pressure - Minimum
30 in Hg
Temperature Resolution
1 Degrees F
Vacuum Port Connection Gender
Male
Manifold Port Connection Type
SAE
Includes Sightglass
Sightglass Not Included
Temperature Units Measured
Degrees F
Manifold Port Connection Gender
Male
Low Side Display Pressure - Maximum
500 psi
Display Illumination
Non-Illuminated
Vacuum Port Connection Thread Direction
Right-Hand
Pressure Units Measured
in Hg, psi
Includes Gauge Boots
Boot Not Included
Pressure Resolution
1 psi

Description

Manifold Gauge Kit, Number of Valves 2, R-22, R-404A, R-410A, Number of Hoses 3, 5 ft, 0 to 800 psi, 30 in Hg to 500 psi, +/-3-2-3 Percent, 1/4 in, Brass, Free Floating Dual O-Ring Sealing System for Faster Evacuation/Charging, Color Coded Refrigerant Dials for Easy Reading, Pull Out Proof Hanging Hook for Convenience, All Metal Gauges, Plastic Hand Wheels Allow Easy Turning, Replaceable Intake/Hose Fittings for Easy Repair, Includes 60 in High Pressure Color Coded Hose Set
