  11. Manifold Gauge Kit, 18 in L, 3 1/8 in Dia

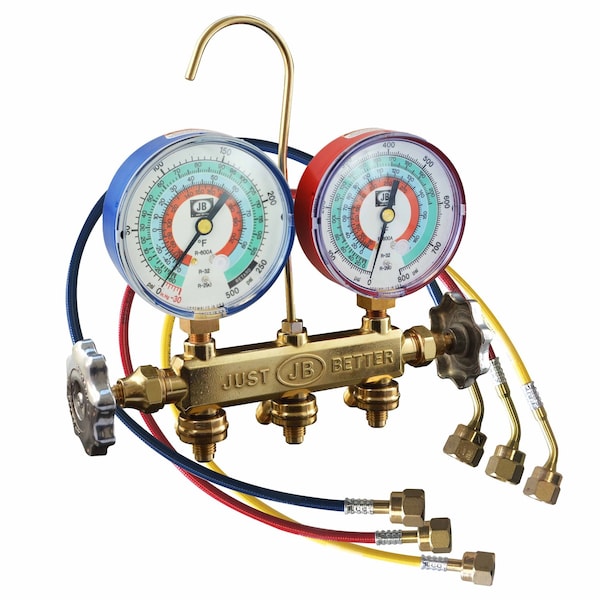

Jb Industries Manifold Gauge Kit, 18 in L, 3 1/8 in Dia 22733RF-18 - main

Manifold Gauge Kit, 18 in L, 3 1/8 in Dia

  • Mfr # 22733RF-18

  • Zoro # G710473382

product price: $188.99
/ea
Free Shipping & Returns

Key Features

Includes
18 in Hose
Body Material
Brass
Number of Valves
2
Hose Material
Polyamide
Material
Brass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22733RF-18
Zoro #
G710473382
UPC #
684520322967
Country of Origin
United States

Dimensions

Hose Length
18 in
Manifold Port Connection Size
1/4 in
Gauge Diameter
3 1/8 in
Vacuum Port Connection Size
1/4 in

Details

Item
Manifold Gauge Kit
Includes
18 in Hose
Body Material
Brass
Number of Valves
2
Hose Material
Polyamide
Material
Brass
Series
PATRIOT
Number of Hoses
3
Features
1 Year Warranty, 360 Degree Swiveling Hose Holders, Easy-To-Turn Metal Handwheels, Original Free Floating Dual O-Ring Sealing System for Faster Evacuation and Charging, Pull-Out Proof Hanging Hook, Solid Brass Forging, Surge Dampened Gauges for Reduced Needle Movement, The Manifold That Gives Back
Refrigerant Compatibility
R-290, R-600A
Gauge Type
High Side/Low Side
High Side Display Pressure - Maximum
800 psi
For Refrigerant Type
R-290, R-600A
Includes Gauge Boots
Boot Not Included
Product Type
Manifold Gauge Kit
Temperature Units Measured
Degrees F
Vacuum Port Connection Thread Direction
Right-Hand
Vacuum Port Connection Type
SAE
Pressure Resolution
1 psi
Manifold Port Connection Thread Direction
Right-Hand
Display Illumination
Glow-in-the-Dark
Response Time
Instantaneous
A2L Compatibility
A2L Compatible
Temperature Resolution
1 Degrees F
Includes Sightglass
Sightglass Included
Low Side Display Pressure - Minimum
30 in Hg
Warranty
1 yr
Vacuum Port Connection Gender
Male
Manifold Port Connection Gender
Male
Hose Color
Blue, Red, Yellow
Includes Vacuum Port
Vacuum Port Included
Display Type
Analog
Hose Connection Thread Direction
Right-Hand
Calibration Certificate Type
Not Certified
Low Side Display Pressure - Maximum
800 psi
Manifold Port Connection Type
SAE
High Side Display Pressure - Minimum
0 psi

Description

Manifold Gauge Kit, Number of Valves 2, R-290, R-600A, Number of Hoses 3, 18 in, Brass, 1 Year Warranty, 360 Degree Swiveling Hose Holders, Easy-To-Turn Metal Handwheels, Original Free Floating Dual O-Ring Sealing System for Faster Evacuation and Charging, Pull-Out Proof Hanging Hook, Solid Brass Forging, Surge Dampened Gauges for Reduced Needle Movement, The Manifold That Gives Back, Includes 18 in Hose
