  11. Manifold Gauge Kit, 5 ft L, 3 1/8 in Gauge

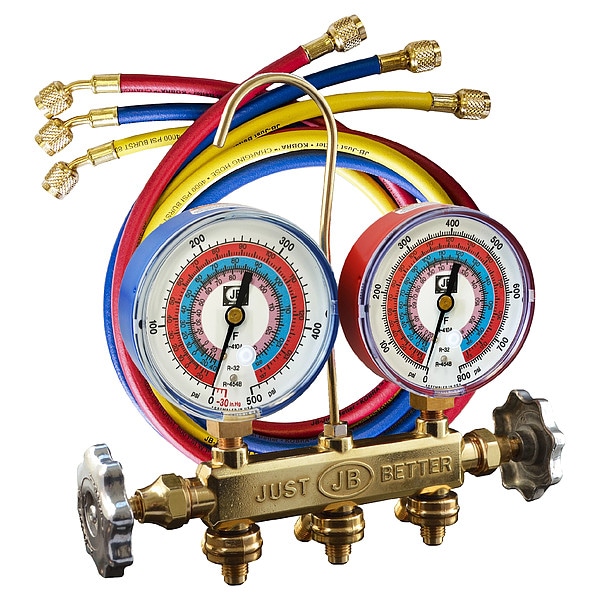

Jb Industries Manifold Gauge Kit, 5 ft L, 3 1/8 in Gauge 22633 - main

Manifold Gauge Kit, 5 ft L, 3 1/8 in Gauge

  • Mfr # 22633

  • Zoro # G609984715

product price: $175.99
/ea
Free Shipping & Returns

Key Features

Material
Brass
Overall Width
2 3/4 in
Overall Height
11 1/2 in
Body Material
Brass
Features
1 Year Warranty, 360 Degree Swiveling Hose Holders, Easy-To-Turn Metal Handwheels, Original Free Floating Dual O-Ring Sealing System for Faster Evacuation and Charging, Pull-Out Proof Hanging Hook, Solid Brass Forging, Surge Dampened Gauges for Reduced Needle Movement, The Manifold That Gives Back
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22633
Zoro #
G609984715
UPC #
684520324602
Country of Origin
United States

Dimensions

Overall Width
2 3/4 in
Overall Height
11 1/2 in
Hose Length
5 ft
Manifold Port Connection Size
1/4 in
Vacuum Port Connection Size
1/4 in
Overall Depth
10 in
Gauge Diameter
3 1/8 in

Details

Item
Manifold Gauge Kit
Material
Brass
Body Material
Brass
Features
1 Year Warranty, 360 Degree Swiveling Hose Holders, Easy-To-Turn Metal Handwheels, Original Free Floating Dual O-Ring Sealing System for Faster Evacuation and Charging, Pull-Out Proof Hanging Hook, Solid Brass Forging, Surge Dampened Gauges for Reduced Needle Movement, The Manifold That Gives Back
Includes
60 in Hose Set
Series
PATRIOT
Number of Hoses
3
Number of Valves
2
Refrigerant Compatibility
R-32, R-410A, R-454B
Low Side Display Pressure - Minimum
30 in Hg
Vacuum Port Connection Thread Direction
Right-Hand
Vacuum Port Connection Type
SAE
Manifold Port Connection Gender
Male
High Side Display Pressure - Minimum
0 psi
Manifold Port Connection Thread Direction
Right-Hand
Includes Sightglass
Sightglass Included
Pressure Resolution
1 psi
Product Type
Manifold Gauge Kit
Manifold Port Connection Type
SAE
Calibration Certificate Type
Not Certified
Response Time
Instantaneous
A2L Compatibility
A2L Compatible
High Side Display Pressure - Maximum
800 psi
Warranty
1 yr
Temperature Resolution
1 Degrees F
Low Side Display Pressure - Maximum
800 psi
Includes Vacuum Port
Vacuum Port Included
For Refrigerant Type
R-32, R-410A, R-454B
Includes Gauge Boots
Boot Not Included
Gauge Type
High Side/Low Side
Vacuum Port Connection Gender
Male
Display Type
Analog
Temperature Units Measured
Degrees F
Display Illumination
Glow-in-the-Dark
Hose Connection Thread Direction
Right-Hand

Description

Manifold with Hose Set - 2 VALVE
