  11. Air Motor, 1.7 HP, 78 cfm, 3000 rpm
Shop All Air Motors
Speedaire

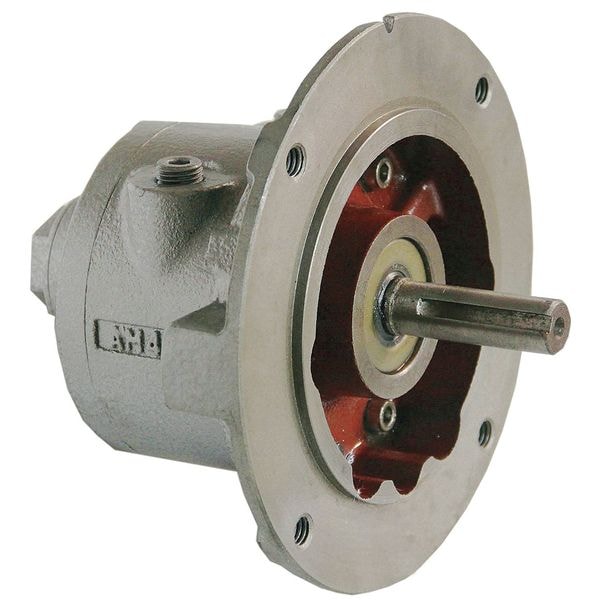

Air Motor, 1.7 HP, 78 cfm, 3000 rpm

product price: $227.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Running Torque @ Max. Pressure 36 in-lb
  • Max. Air Flow 78 cfm
  • HP 1.7 hp
  • No Load RPM 3,000 RPM
  • Shaft Dia. 5/8 in
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Port Size 1/4 in NPT
Overall Length 6 5/8 in
Shaft Length 2 in
Overall Height 6 5/8 in
Overall Width 6 5/8 in
Outside Diameter 4 in
Shaft Diameter 5/8 in
Keyway Depth 1/8 in
Manufacturers Warranty Length 1 yr
Inlet Size 1/4 in
Keyway Width 1/4 in
Keyway Length 1 3/8 in

Details

Item Air Motor
Running Torque @ Max. Pressure 36 in-lb
Max. Air Flow 78 cfm
HP 1.7 hp
No Load RPM 3,000 RPM
Mounting Flange
Rotation CW/CCW
Operating Temp. Range 0 Degrees to 250 Degrees F
RPM @ Max. Torque 250 RPM
Housing Material Aluminum, Cast Iron
Max. Air Pressure 100 psi
Includes Muffler
Finish Gray
Mount Type Flange
Weight 8.82 lb
Maximum Ambient Temperature 250 Degrees F
Minimum Ambient Temperature 0 Degrees F
Air Inlet Type NPT
Inlet Gender Female
Motor Frame Material Cast Iron
Keyway Type Flat Key
Maximum Flow Rate 78 cfm
Minimum Operating Pressure 1.4 bar
Nameplate Speed 300 RPM
Housing Material Finish Painted
System of Measurement Inch
Speed @ Maximum Torque 250 RPM
Shaft Material Grade 40Cr
Maximum Torque 36 in-lb
Mounting Orientation Any Angle
Shaft Orientation Inline
Shaft Material Steel
Air Inlet Center to Center Distance 2 1/2 in
No Load Speed 3,000 RPM
Output Power @ Maximum Speed 1.7 hp
Minimum Flow Rate 5.28 cfm
Air Consumption 78 cfm
Maximum Operating Pressure 100 psi
Number of Vanes 4

Description

Air Motor, Output Power @ Maximum Speed 1.7 hp, Maximum Torque 36 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 78 cfm, Shaft Diameter 5/8 in, Shaft Length 2 in, Mount Type Flange, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Aluminum, Cast Iron, Shaft Material Grade 40Cr, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/4 in, Weight 8.82 lb, Housing Material Grade Not Applicable
