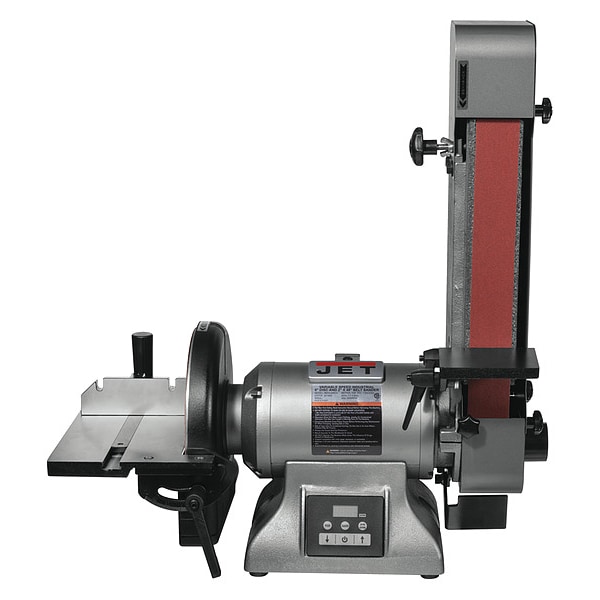

Combo Wheel and Belt Grinder

  • Mfr # 577842

  • Zoro # G1897789

product price:
$
1,146.99
/ea
Free Shipping & Returns

Key Features

Voltage
115 V, 230 V
Cord Length
72 in
Switch Type
TACT
Tool Weight
74 lb
Standards
CSA, US Certified
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
577842
Zoro #
G1897789
UPC #
731325806854
Country of Origin
Taiwan, Province of China

Dimensions

Cord Length
72 in
Tool Length
23 1/2 in
Max. Belt Width
2 in
Overall Height
12 1/4 in, 25 7/8 in
Min. Belt Width
2 in
Belt Length
48 in
Overall Length
23 1/2 in
Dust Collection Port Size
2 in
Disc Table Size
5 7/8 in x 11 7/8 in
Belt Table Size
3 in x 4 3/8 in
Overall Width
15 in, 26 3/4 in
Belt Table Width
3 in
Tool Height
25 7/8 in
Disc Table Width
5 7/8 in
Maximum Disc Diameter
9 in
Grinding Wheel Diameter
9 in
Tool Width
26 3/4 in
Belt Width
2 in
Belt Table Length
4 3/8 in
Disc Table Length
11 7/8 in

Details

Item
Belt and Disc Sander
Voltage
115 V, 230 V
Switch Type
TACT
Tool Weight
74 lb
Standards
CSA, US Certified
Application
Deburring and Finishing/Polishing of Both Ferrous and Nonferrous Alloy, Radiusing
Features
Aluminum Disc Reduces Heat Buildup, Cast Iron Work Rests with Tool-Less Adjustments, Contact Wheel Grinding with Toolless Access, Belt Tracking, Heavy Cast Iron Bases Reduce Vibration, Solid Cast Iron Platen Offers Rigid Grinding Surface, Two Dust Collection Ports Minimize Debris Build Up
Table Material
Cast Iron
Phase
Three-Phase
Includes
Break Resistor
Belt Table Tilting Angle
45 Degrees
Current
7 A
Dust Management
Yes
Duty
Heavy -Duty
Plug Type
Three-Prong
Belt Orientation
Horizontal, Vertical
Lights Included
No
Frequency
60 Hz
Max. Disc Speed
3,600 RPM
Electrical Protection
Safety Switch
Bearing Type
Sealed Bearing
Disc Table Tilting Angle
45 Degrees
Max. Belt Speed
4,712 SFPM
Horsepower
1 hp
Min. Belt Speed
1,178 SFPM
Disc Table Angle Setting
Yes
Min. Disc Speed
900 RPM
Grinding Wheel Grit
80
Disc Table Material
Cast Iron
Belt Table Angle Setting
Yes
Belt Table Material
Cast Iron
Electrical Connection
AC Powered
Belt Speed
4,712 SFPM
Maximum Motor Speed
3,600 RPM
Product Type
Belt and Disc Grinder
Power Source
Corded
Minimum Disc Speed
900 RPM
Number of Speeds
1
Maximum Disc Table Tilt-Out Angle
45 Degrees
Minimum Motor Speed
900 RPM
Speed Settings
Fixed
Mounting Location
Benchtop
Maximum Disc Speed
3,600 RPM
Compatible Workpiece Material
Metal
Grinding Wheel Speed
3,600 RPM
Power Source - TS Only
Corded
Power Source - old
Corded

Description

Belt and Disc Sander, Product Type Belt and Disc Grinder, Compatible Workpiece Material Metal, Voltage 115 V, 230 V, Phase Three-Phase, Horsepower 1 hp, Mounting Location Benchtop, Belt Speed 4,712 SFPM, Grinding Wheel Diameter 9 in, Grinding Wheel Speed 3,600 RPM, Speed Settings Fixed, Maximum Disc Table Tilt-Out Angle 45 Degrees , Maximum Disc Table Tilt-In Angle Not Applicable, Number of Speeds 1, Belt Length 48 in, Belt Orientation Horizontal, Vertical, Belt Table Length 4 3/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
