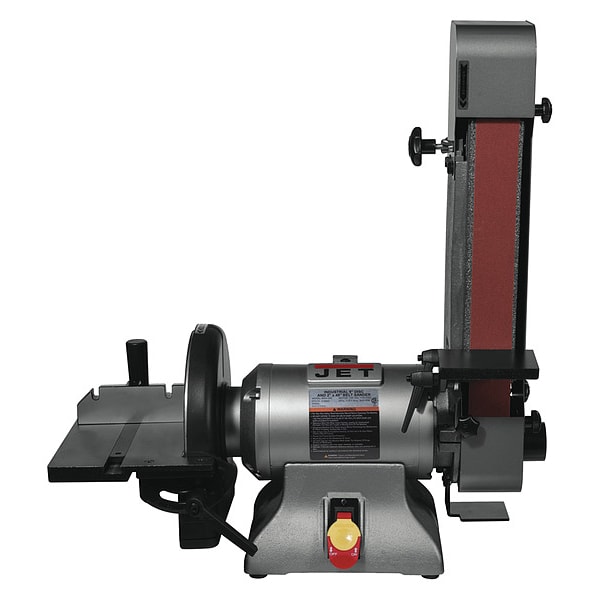

Jet Combo Wheel and Belt Grinder 578842 - main

Combo Wheel and Belt Grinder

  • Mfr # 578842

  • Zoro # G1897770

product price: $921.99
/ea
Free Shipping & Returns

Key Features

Voltage
115 V
Cord Length
72 in
Phase
Single-Phase
Standards
CSA
Tool Weight
74 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
578842
Zoro #
G1897770
UPC #
731325806861
Country of Origin
Taiwan, Province of China

Dimensions

Cord Length
72 in
Tool Length
23 1/2 in
Min. Belt Width
2 in
Overall Width
15 in, 26 3/4 in
Belt Length
48 in
Belt Table Size
3 in x 4 3/8 in
Max. Belt Width
2 in
Disc Table Size
5 7/8 in x 11 7/8 in
Overall Height
12 1/4 in, 25 7/8 in
Dust Collection Port Size
2 in
Overall Length
23 1/2 in
Grinding Wheel Diameter
9 in
Tool Width
26 3/4 in
Disc Table Width
5 7/8 in
Belt Width
2 in
Disc Table Length
11 7/8 in
Maximum Disc Diameter
9 in
Belt Table Length
4 3/8 in
Tool Height
25 7/8 in
Belt Table Width
3 in

Details

Item
Belt and Disc Sander
Voltage
115 V
Phase
Single-Phase
Standards
CSA
Tool Weight
74 lb
Switch Type
TACT
Features
Aluminum Disc Reduces Heat Buildup, Cast Iron Work Rests with Tool-Less Adjustments, Contact Wheel Grinding with Toolless Access, Belt Tracking, Heavy Cast Iron Bases Reduce Vibration, Solid Cast Iron Platen Offers Rigid Grinding Surface, Two Dust Collection Ports Minimize Debris Build Up
Application
Deburring and Finishing/Polishing of Both Ferrous and Nonferrous Alloy, Radiusing
Table Material
Cast Iron
Max. Belt Speed
4,712 SFPM
Electrical Protection
Safety Switch
Disc Table Angle Setting
Yes
Dust Management
Yes
Duty
Heavy -Duty
Disc Table Tilting Angle
45 Degrees
Belt Orientation
Horizontal, Vertical
Belt Table Angle Setting
Yes
Plug Type
Three-Prong
Min. Disc Speed
3,600 RPM
Grinding Wheel Grit
80
Disc Table Material
Cast Iron
Frequency
60 Hz
Bearing Type
Sealed Bearing
Min. Belt Speed
4,712 SFPM
Lights Included
No
Belt Table Tilting Angle
45 Degrees
Horsepower
1 hp
Electrical Connection
AC Powered
Max. Disc Speed
3,600 RPM
Current
11 A
Belt Table Material
Cast Iron
Belt Speed
4,712 SFPM
Speed Settings
Fixed
Compatible Workpiece Material
Metal
Minimum Disc Speed
3,600 RPM
Product Type
Belt and Disc Grinder
Maximum Motor Speed
3,600 RPM
Grinding Wheel Speed
3,600 RPM
Power Source
Corded
Maximum Disc Speed
3,600 RPM
Mounting Location
Benchtop
Maximum Disc Table Tilt-Out Angle
45 Degrees
Number of Speeds
1

Description

Belt and Disc Sander, Product Type Belt and Disc Grinder, Compatible Workpiece Material Metal, Voltage 115 V, Phase Single-Phase, Horsepower 1 hp, Mounting Location Benchtop, Belt Speed 4,712 SFPM, Grinding Wheel Diameter 9 in, Grinding Wheel Speed 3,600 RPM, Variable Speed Fixed, Maximum Disc Table Tilt-Out Angle 45 Degrees , Maximum Disc Table Tilt-In Angle Not Applicable, Number of Speeds 1, Belt Length 48 in, Belt Orientation Horizontal, Vertical, Belt Table Length 4 3/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
