  11. GH-1440B GH BNCH LTH W TAPR ATT

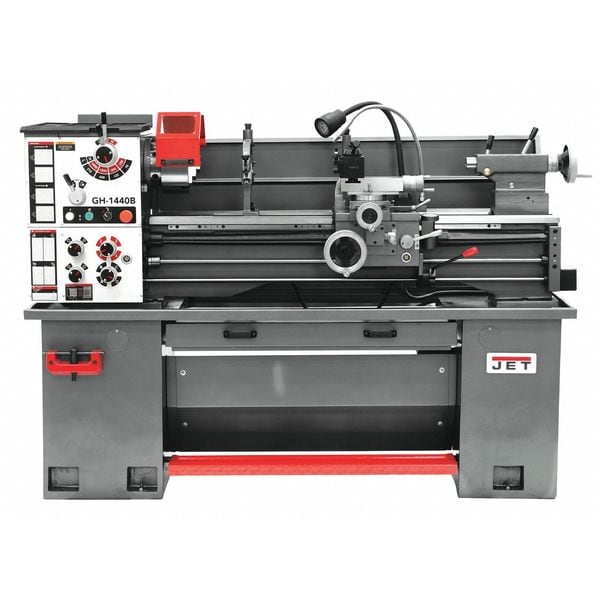

Jet GH-1440B GH BNCH LTH W TAPR ATT GH-1440B - main

GH-1440B GH BNCH LTH W TAPR ATT

  • Mfr # GH-1440B

  • Zoro # G3346128

product price: $21,341.99
/ea
Additional $405.00 delivery surcharge applies per item.
See details

Key Features

Thread Range (In.)
4-56
Overall Height
59 13/16 in
Swing Over Cross Slide (In.)
21
Longitudinal Feed Rates
0.002 -0.0548
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GH-1440B
Zoro #
G3346128
UPC #
731325733952
Country of Origin
China

Dimensions

Overall Height
59 13/16 in
Overall Width
29 29/32 in
Overall Length
76 in
Bed Width (In.)
7-1/2
Gap Length (In.)
8
Gap Length
8 in
Bed Width
7 8/25 in
Spindle Dia.
1 1/4 in
Overall Depth
76 13/32 in
Spindle Nose Diameter
1 1/4 in
Tailstock Diameter
1 1/4 in

Details

Item
Lathe
Thread Range (In.)
4-56
Swing Over Cross Slide (In.)
21
Longitudinal Feed Rates
0.002 -0.0548
Phase
Single
Carriage Travel (In.)
37-2/5
Includes
10 in Faceplate (Strapped to Container), 8 in Four Jaw Chuck (Strapped to Container), 8 in Three Jaw Chuck (Mounted on Lathe), Chip Tray, Follow Rest (Mounted on Lathe), GH1440B-TBCP Tool Box (Strapped to Container), Splash Guard, Steady Rest (Mounted on Lathe)
Tailstock Taper
MT4
Swing In Gap (In.)
20
Voltage
230V AC
Tailstock Travel (In.)
4
Swing Over Bed (In.)
14
Primary Application
Metal Turning
Features
Precision Spindle Roller Bearingshigh Quality Steel Hardened Gears in Headstocklead Screw Covercast Iron Standfoot Brake Comes Standardemergency Stop within Easy Reach of the Operatoremergency Stop within Easy Reach of the Operatorchuck Guard
Number of Threads (In.)
34
Spindle Taper
MT4
Compound Travel (In.)
3-1/2
Thread Range (mm)
0.4-7
Distance Between Centers (In.)
40
Cross Travel (In.)
7
Cross Feed Rates
32/32
Number of Spindle Speeds
8
Number of Threads (mm)
26
Motor HP
2
Spindle Speed (RPM)
70-1900
Spindle Bore (In.)
2
Coolant Tank Capacity
Not Rated
Hz
60
Application
Metal Turning
Number of Metric Threads
26
Swing Over Bed
14 in
Max. Metric Thread
7 mm
Swing In Gap
20 in
Min. Metric Thread
0.4 mm
Max. Threads per Inch
56
Max. Spindle Speed
1,900 RPM
Swing Over Cross Slide
8 in
Number of Inch Threads
34
Min. Spindle Speed
70 RPM
Sound Level
88 dB
Min. Cross Feed
0.007 in
Min. Threads per Inch
4
Current
15.3 A
Spindle Nose Type
D1-5 Camlock
Spindle Bore
2 in
Frequency
60 Hz
Distance Between Centers
36 7/8 in
Max. Cross Feed
0.0187 in
Horsepower
2 hp
Lathe Head Drive
Gear Drive
Longitudinal Feed - Maximum
0.0548 in/rev
Tailstock Spindle Travel
4 in
Maximum Compound Slide Travel
3 1/2 in
Includes Taper Attachment
Taper Attachment Included
Cross Feed - Maximum
0.0187 in/rev
Spindle Nose Taper
D1-5 Camlock
Manufacturer Warranty
Limited
Threads per Inch - Maximum
56
Includes Collet Closer
No Collet Closer
Cross Feed - Minimum
0.007 in/rev
Swing Over Gap
20 in
Spindle Speed - Maximum
1,900 RPM
Spindle Speed - Minimum
70 RPM
Metric Thread - Minimum
0.4 mm
Series
GH-1440B
Maximum Carriage Travel
37 2/5 in
Metric Thread - Maximum
7 mm
Longitudinal Feed - Minimum
0.002 in/rev
Threads per Inch - Minimum
4
Maximum Cross Slide Travel
7 in

Description

Lathe, Distance Between Centers 36 7/8 in, Voltage 230V AC, Horsepower 2 hp, Min. Spindle Speed 70 RPM, Application Metal Turning, Overall Height 59 13/16 in, Overall Length 76 in, Overall Width 29 29/32 in, Max. Spindle Speed 1,900 RPM, Tailstock Taper MT4, Spindle Nose Type D1-5 Camlock
