  11. GHB-1236 GH BNCH LTH W/ DP700

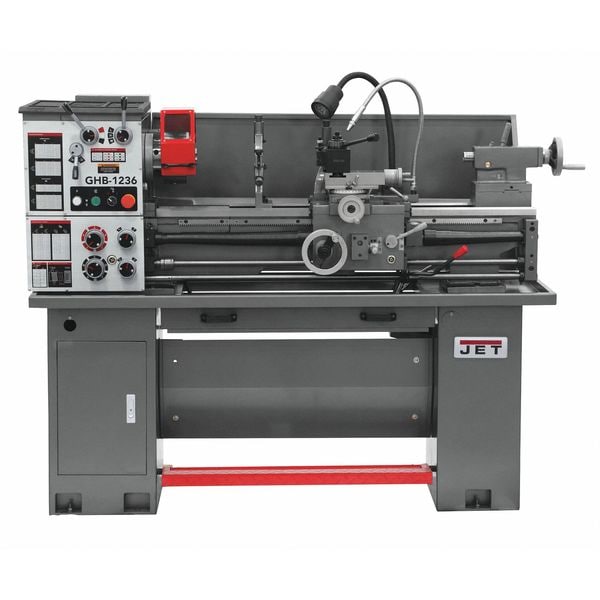

Jet GHB-1236 GH BNCH LTH W/ DP700 GHB-1236 - main

GHB-1236 GH BNCH LTH W/ DP700

  • Mfr # GHB-1236

  • Zoro # G3346268

product price: $19,903.99
/ea
Item requires special delivery charges. A $405.00 per item surcharge will be applied.

Key Features

Thread Range (In.)
4-60
Tailstock Travel (In.)
3-1/2
Overall Width
29 53/100 in
Number of Spindle Speeds
9
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GHB-1236
Zoro #
G3346268
UPC #
731325733921
Country of Origin
China

Dimensions

Overall Width
29 53/100 in
Bed Width (In.)
7-1/2
Overall Length
66 in
Gap Length (In.)
8-3/4
Overall Height
57 12/25 in
Spindle Dia.
1 1/4 in
Bed Width
7 3/25 in
Gap Length
8 3/4 in
Leadscrew Size
7/8 in x 8 TPI
Overall Depth
66 7/50 in
Spindle Nose Diameter
1 1/4 in
Tailstock Diameter
1 1/4 in

Details

Item
Lathe
Thread Range (In.)
4-60
Tailstock Travel (In.)
3-1/2
Number of Spindle Speeds
9
Phase
Single
Longitudinal Feed Rates
0.0019 - 0.0472
Features
Precision Spindle Roller Bearingshigh Quality Steel Hardened Gears in Headstocklead Screw Covercast Iron Standfoot Brake Comes Standardemergency Stop within Easy Reach of the Operatoremergency Stop within Easy Reach of the Operatorchuck Guard
Spindle Taper
MT-3
Motor HP
2
Hz
60
Spindle Bore (In.)
1.575
Cross Feed Rates
48/36
Tailstock Taper
MT3
Coolant Tank Capacity
Not Rated
Voltage
230V AC
Thread Range (mm)
0.4-7
Cross Travel (In.)
5-1/2
Swing Over Bed (In.)
12
Distance Between Centers (In.)
40
Primary Application
Metal Turning
Spindle Speed (RPM)
75 - 1400
Includes
10 in Faceplate (Strapped to Container), 6 in Three Jaw Chuck (Mounted on Lathe), 8 in Four Jaw Chuck (Strapped to Container), Chip Tray, Follow Rest (Mounted on Lathe), Splash Guard, Steady Rest (Mounted on Lathe), Tool Box (Strapped to Container)
Swing Over Cross Slide (In.)
7-1/2
Compound Travel (In.)
3
Number of Threads (mm)
32
Carriage Travel (In.)
27-3/8
Swing In Gap (In.)
23-27/64
Application
Metal Turning
Spindle Bore
1 5/8 in
Number of Metric Threads
32
Min. Threads per Inch
4
Current
8.5 A
Min. Metric Thread
0.4 mm
Frequency
60 Hz
Max. Spindle Speed
1,400 RPM
Swing Over Cross Slide
7 1/2 in
Max. Metric Thread
7 mm
Min. Spindle Speed
75 RPM
Horsepower
2 hp
Min. Cross Feed
0.0014 in
Distance Between Centers
33 in
Sound Level
88 dB
Max. Cross Feed
0.0116 in
Spindle Nose Type
D1-4 Camlock
Swing In Gap
18 in
Swing Over Bed
12 in
Max. Threads per Inch
60
Number of Inch Threads
36
Metric Thread - Minimum
0.4 mm
Maximum Cross Slide Travel
5 1/2 in
Lathe Head Drive
Gear Drive
Digital Readout Included
Newall DP700
Spindle Nose Taper
D1-4 Camlock
Threads per Inch - Minimum
4
Longitudinal Feed - Minimum
0.0019 in/rev
Includes Digital Readout
Digital Readout Included
Swing Over Gap
18 in
Spindle Speed - Maximum
1,400 RPM
Includes Taper Attachment
No Taper Attachment
Maximum Compound Slide Travel
3 in
Includes Collet Closer
No Collet Closer
Cross Feed - Maximum
0.0116 in/rev
Maximum Carriage Travel
27 3/8 in
Tailstock Spindle Travel
3 1/2 in
Series
GHB-1236
Threads per Inch - Maximum
60
Longitudinal Feed - Maximum
0.0472 in/rev
Spindle Speed - Minimum
75 RPM
Cross Feed - Minimum
0.0014 in/rev
Manufacturer Warranty
Limited
Metric Thread - Maximum
7 mm

Description

Lathe, Distance Between Centers 33 in, Voltage 230V AC, Horsepower 2 hp, Min. Spindle Speed 75 RPM, Application Metal Turning, Overall Height 57 12/25 in, Overall Length 66 in, Overall Width 29 53/100 in, Max. Spindle Speed 1,400 RPM, Tailstock Taper MT3, Spindle Nose Type D1-4 Camlock
