  11. Lathe, 1 Motor HP, 60 Hz, Variable Speed

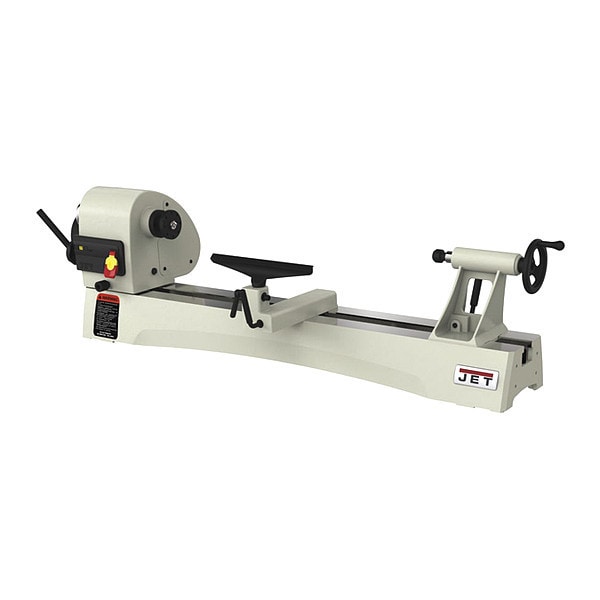

Jet Lathe, 1 Motor HP, 60 Hz, Variable Speed JWL-1440VS - main

Lathe, 1 Motor HP, 60 Hz, Variable Speed

  • Mfr # JWL-1440VS

  • Zoro # G3345428

product price: $2,277.99
/ea
Item requires special delivery charges. A $145.00 per item surcharge will be applied.

Key Features

Features
Sliding Headstock Pivots 360 Degrees with 7 Positive Locking Positions (0 Degrees , 30 Degrees , 60 Degrees , 90 Degrees , 120 Degrees , 180 Degrees , 270 Degrees ) for Maximum Variability and Optimal User Comfort, Variable Speed from 400 to 3000 RPM, Positive Locking Tool Rest with Redesigned Clamping, Optional Extension Bed Takes the Capacity to 60 in Between Centers, Acme Thread in Tailstock
Includes
(2) Legs - B, (2) Riser Blocks - M, (4) Levelers - L, Faceplate - G, Faceplate Wrench - J, Hardware Package, Knockout Rod - F, Lathe Bed with Headstock, Tool Support and Tailstock - A, Live Cone Center - E, Spindle Index Pin - C, Spur Center - D, Tool Rest - H, Tool Rest Extension - K, Warranty Card
Overall Length
56 in
Number of Threads (mm)
0
Spindle Speed (RPM)
400 to 3000
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
JWL-1440VS
Zoro #
G3345428
UPC #
731325342154
Country of Origin
Taiwan, Province of China

Dimensions

Overall Length
56 in
Overall Width
18 in
Overall Height
49 in
Bed Width (In.)
8
Bed Width
8 in
Overall Depth
74 in
Bed Length
53 in

Details

Item
Wood Lathe
Features
Sliding Headstock Pivots 360 Degrees with 7 Positive Locking Positions (0 Degrees , 30 Degrees , 60 Degrees , 90 Degrees , 120 Degrees , 180 Degrees , 270 Degrees ) for Maximum Variability and Optimal User Comfort, Variable Speed from 400 to 3000 RPM, Positive Locking Tool Rest with Redesigned Clamping, Optional Extension Bed Takes the Capacity to 60 in Between Centers, Acme Thread in Tailstock
Includes
(2) Legs - B, (2) Riser Blocks - M, (4) Levelers - L, Faceplate - G, Faceplate Wrench - J, Hardware Package, Knockout Rod - F, Lathe Bed with Headstock, Tool Support and Tailstock - A, Live Cone Center - E, Spindle Index Pin - C, Spur Center - D, Tool Rest - H, Tool Rest Extension - K, Warranty Card
Number of Threads (mm)
0
Spindle Speed (RPM)
400 to 3000
Number of Threads (In.)
0
Hz
60
Swing Over Bed (In.)
14
Distance Between Centers (In.)
40
Voltage
115V
Phase
Single
Spindle Taper
MT-2
Spindle Bore (In.)
3/8
Motor HP
1
Number of Spindle Speeds
Variable
Tailstock Travel (In.)
4-1/2
Primary Application
Wood Turning
Tailstock Taper
MT2
Standards
CSA
Application
Wood Turning
Swing Over Bed
14 1/2 in
Frequency
60 Hz
Horsepower
1 hp
Spindle Bore
3/8 in
Number of Inch Threads
0
Max. Spindle Speed
3,975 RPM
Distance Between Centers
60 3/4 in
Number of Metric Threads
0
Min. Spindle Speed
500 RPM
Current
5.5 A, 11 A
Sound Level
88 dB
Spindle Speed - Minimum
400 RPM
Threads per Inch - Minimum
1
Manufacturer Warranty
Limited
Series
JWL-1440VS
Includes Stand
Stand Sold Separately
Lathe Head Drive
Electronic Variable Speed
Spindle Nose Taper
MT2
Threads per Inch - Maximum
8
Spindle Speed - Maximum
3,000 RPM

Description

Wood Lathe, Distance Between Centers 60 3/4 in, Voltage 115V, Horsepower 1 hp, Min. Spindle Speed 500 RPM, Application Wood Turning, Overall Height 49 in, Overall Length 56 in, Overall Width 18 in, Max. Spindle Speed 3,975 RPM, Tailstock Taper MT2
