  11. Lathe, 1 Motor HP, 60 Hz, Variable Speed

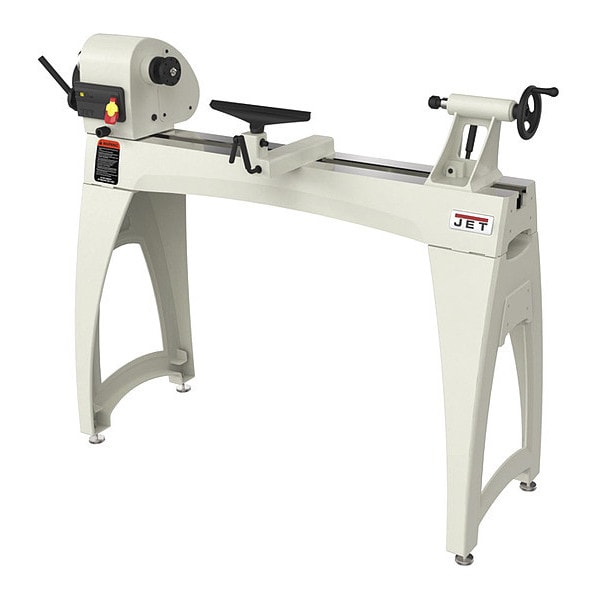

Jet Lathe, 1 Motor HP, 60 Hz, Variable Speed JWL-1440VSK - main

Lathe, 1 Motor HP, 60 Hz, Variable Speed

  • Mfr # JWL-1440VSK

  • Zoro # G3345419

product price: $2,749.00
/ea
Additional $405.00 delivery surcharge applies per item.
See details

Key Features

Number of Threads (mm)
0
Phase
Single
Spindle Bore (In.)
3/8
Motor HP
1
Number of Spindle Speeds
Variable
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
JWL-1440VSK
Zoro #
G3345419
UPC #
731325352733
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
49 in
Bed Width (In.)
8
Overall Width
18 in
Overall Length
88 in
Bed Width
8 in
Overall Depth
74 in
Bed Length
53 in

Details

Item
Wood Lathe
Number of Threads (mm)
0
Phase
Single
Spindle Bore (In.)
3/8
Motor HP
1
Number of Spindle Speeds
Variable
Distance Between Centers (In.)
40
Features
Sliding Headstock Pivots 360 Degrees with 7 Positive Locking Positions (0 Degrees , 30 Degrees , 60 Degrees , 90 Degrees , 120 Degrees , 180 Degrees , 270 Degrees ) for Maximum Variability and Optimal User Comfort, Variable Speed from 400 to 3000 RPM, Positive Locking Tool Rest with Redesigned Clamping, Optional Extension Bed Takes the Capacity to 60 in Between Centers, Acme Thread in Tailstock
Swing Over Bed (In.)
14
Number of Threads (In.)
0
Tailstock Travel (In.)
4-1/2
Spindle Speed (RPM)
400 to 3000
Includes
(2) Legs - B, (2) Riser Blocks - M, (4) Levelers - L, Faceplate - G, Faceplate Wrench - J, Hardware Package, Knockout Rod - F, Lathe Bed with Headstock, Tool Support and Tailstock - A, Live Cone Center - E, Spindle Index Pin - C, Spur Center - D, Tool Rest - H, Tool Rest Extension - K, Warranty Card
Spindle Taper
MT-2
Hz
60
Primary Application
Wood Turning
Voltage
115V
Tailstock Taper
MT2
Application
Wood Turning
Standards
CSA
Horsepower
1 hp
Frequency
60 Hz
Max. Spindle Speed
3,975 RPM
Swing Over Bed
14 1/2 in
Number of Metric Threads
0
Number of Inch Threads
0
Spindle Bore
3/8 in
Min. Spindle Speed
500 RPM
Distance Between Centers
60 3/4 in
Current
5.5 A, 11 A
Sound Level
88 dB
Includes Stand
Stand Included
Threads per Inch - Maximum
8
Spindle Speed - Maximum
3,000 RPM
Lathe Head Drive
Electronic Variable Speed
Series
JWL-1440VSK
Spindle Speed - Minimum
400 RPM
Threads per Inch - Minimum
1
Manufacturer Warranty
Limited
Spindle Nose Taper
MT2

Description

Wood Lathe, Distance Between Centers 60 3/4 in, Voltage 115V, Horsepower 1 hp, Min. Spindle Speed 500 RPM, Application Wood Turning, Overall Height 49 in, Overall Length 88 in, Overall Width 18 in, Max. Spindle Speed 3,975 RPM, Tailstock Taper MT2
