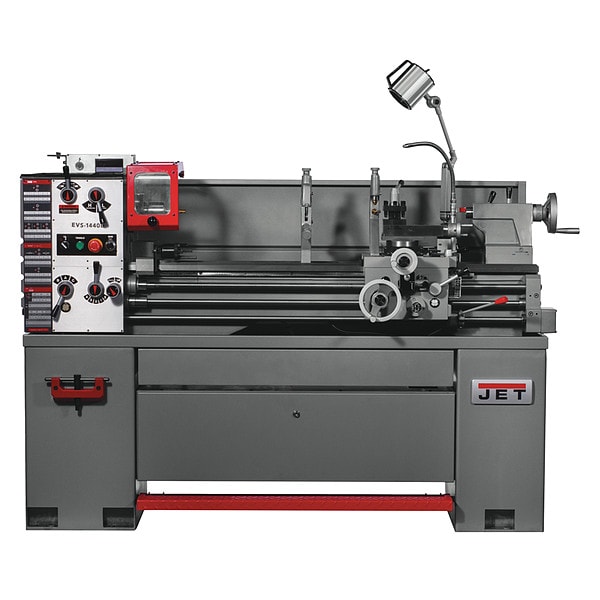

Lathes

Mfr # 311440
Zoro # G1896748

21,671.99

/ea

Additional $550.00 delivery surcharge applies per item.

See details

Key Features

Phase

Three

Voltage

230V AC

Frequency

60 Hz

Distance Between Centers

40 in

Horsepower

3 hp

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 311440
Zoro #: G1896748
UPC #: 731325785777
Country of Origin: Taiwan, Province of China

Dimensions

Overall Length: 74 in
Overall Width: 28 3/10 in
Overall Height: 50 in
Bed Width: 7 12/25 in
Gap Length: 9 1/2 in
Overall Depth: 68 1/2 in
Leadscrew Size: 7/8 in x 8 TPI
Wire Rope Length: 74 in
Length: 74 in

Details

Item: Lathe
Phase: Three
Voltage: 230V AC
Frequency: 60 Hz
Distance Between Centers: 40 in
Horsepower: 3 hp
Includes: (6) Leveling Pads (Not Shown), 4-Position Carriage Stop (Pre-Installed), 6 in (150 mm) Backplate (Pre-Installed), 6 in Three Jaw Scroll Chuck (Pre-Installed), Follow Rest (Pre-Installed), LED Work Lamp, Splash Guard (Pre-Installed), Steady Rest (Pre-Installed), Tool Box
Number of Spindle Speeds: Variable
Tailstock Taper: MT3
Spindle Bore: 1 1/2 in
Number of Metric Threads: 34
Sound Level: 60 dB
Swing In Gap: 19 1/2
Max. Metric Thread: 12 mm
Swing Over Bed: 14 in
Min. Threads per Inch: 2
Spindle Nose Type: D1-4 Camlock
Min. Spindle Speed: 40 RPM
Min. Metric Thread: 0.5 mm
Application: Metal Turning
Swing Over Cross Slide: 9 1/16 in
Max. Spindle Speed: 2,000 RPM
Number of Inch Threads: 34
Max. Threads per Inch: 56
Spindle Speed - Maximum: 2,000 RPM
Maximum Carriage Travel: 35 1/2 in
Metric Thread - Maximum: 12 mm
Cross Feed - Minimum: 25 in/rev
Lathe Head Drive: Electronic Variable Speed
Series: EVS-1440B
Manufacturer Warranty: Limited
Threads per Inch - Minimum: 2
Longitudinal Feed - Minimum: 0.0016 in/rev
Current: 4.2 A, 8.4 A
Spindle Nose Taper: D1-4 Camlock
Maximum Cross Slide Travel: 7 in
Cross Feed - Maximum: 25 in/rev
Tailstock Spindle Travel: 6 1/8 in
Threads per Inch - Maximum: 56
Maximum Compound Slide Travel: 3 1/2 in
Longitudinal Feed - Maximum: 0.046 in/rev
Spindle Speed - Minimum: 40 RPM
Includes Stand: Stand Included
Metric Thread - Minimum: 0.5 mm
Swing Over Gap: 19 1/2 in

Description

Lathe, Distance Between Centers 40 in, Voltage 230V AC, Horsepower 3 hp, Min. Spindle Speed 40 RPM, Application Metal Turning, Overall Height 50 in, Overall Length 74 in, Overall Width 28 3/10 in, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT3, Spindle Nose Type D1-4 Camlock

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
