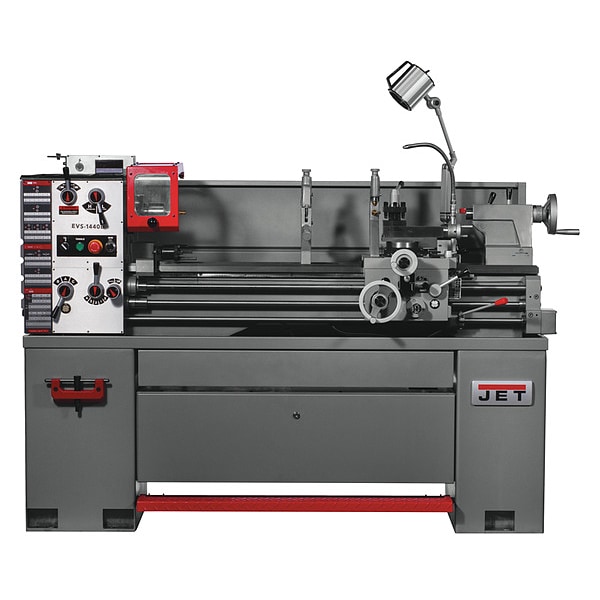

Jet Lathes 311444 - main

Lathes

  • Mfr # 311444

  • Zoro # G1896547

product price: $28,724.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Phase
Three
Voltage
230V AC
Frequency
60 Hz
Distance Between Centers
40 in
Horsepower
3 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
311444
Zoro #
G1896547
UPC #
731325791976
Country of Origin
Taiwan, Province of China

Dimensions

Overall Width
28 3/10 in
Overall Height
50 in
Overall Length
74 in
Bed Width
7 12/25 in
Leadscrew Size
7/8 in x 8 TPI
Gap Length
9 1/2 in
Overall Depth
68 1/2 in

Details

Item
Lathe
Phase
Three
Voltage
230V AC
Frequency
60 Hz
Distance Between Centers
40 in
Horsepower
3 hp
Includes
(6) Leveling Pads (Not Shown), 4-Position Carriage Stop (Pre-Installed), 6 in (150 mm) Backplate (Pre-Installed), 6 in Three Jaw Scroll Chuck (Pre-Installed), Follow Rest (Pre-Installed), Splash Guard (Pre-Installed), Steady Rest (Pre-Installed), Tool Box
Tailstock Taper
MT3
Number of Spindle Speeds
Variable
Spindle Bore
1 1/2 in
Min. Spindle Speed
40 RPM
Swing In Gap
19 1/2
Swing Over Cross Slide
9 1/16 in
Min. Metric Thread
0.5 mm
Min. Threads per Inch
2
Application
Metal Turning
Max. Threads per Inch
56
Number of Inch Threads
34
Max. Metric Thread
12 mm
Number of Metric Threads
34
Swing Over Bed
14 in
Spindle Nose Type
D1-4 Camlock
Max. Spindle Speed
2,000 RPM
Sound Level
60 dB
Swing Over Gap
19 1/2 in
Spindle Speed - Minimum
40 RPM
Cross Feed - Minimum
0.0005 in/rev
Digital Readout Included
Acu-Rite 203
Tailstock Spindle Travel
6 1/8 in
Series
EVS-1440
Maximum Cross Slide Travel
7 in
Includes Digital Readout
Digital Readout Included
Maximum Carriage Travel
35 1/2 in
Lathe Head Drive
Electronic Variable Speed
Longitudinal Feed - Minimum
0.0016 in/rev
Longitudinal Feed - Maximum
0.046 in/rev
Metric Thread - Minimum
0.5 mm
Spindle Nose Taper
D1-4 Camlock
Metric Thread - Maximum
12 mm
Includes Stand
Stand Included
Threads per Inch - Maximum
56
Cross Feed - Maximum
0.015 in/rev
Current
4.2 A, 8.4 A
Threads per Inch - Minimum
2
Maximum Compound Slide Travel
3 1/2 in
Manufacturer Warranty
Limited
Spindle Speed - Maximum
2,000 RPM

Description

Lathe, Distance Between Centers 40 in, Voltage 230V AC, Horsepower 3 hp, Min. Spindle Speed 40 RPM, Application Metal Turning, Overall Height 50 in, Overall Length 74 in, Overall Width 28 3/10 in, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT3, Spindle Nose Type D1-4 Camlock
