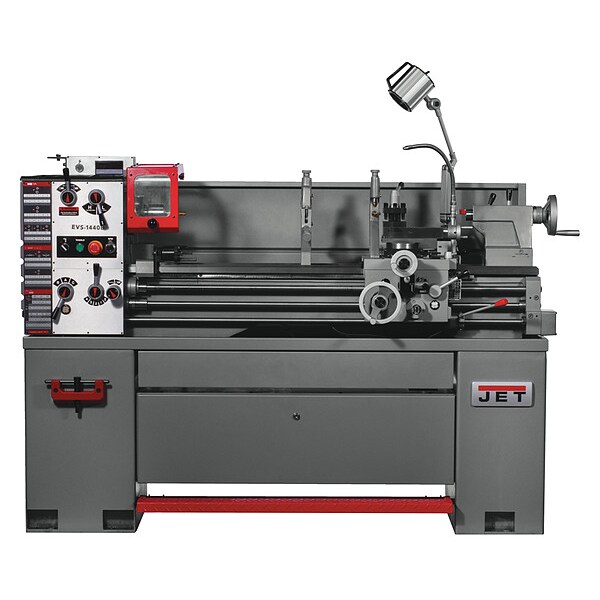

Jet Lathes 311450 - main

Lathes

  • Mfr # 311450

  • Zoro # G1896860

product price: $28,336.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Phase
Three
Voltage
230V AC
Frequency
60 Hz
Distance Between Centers
40 in
Horsepower
3 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
311450
Zoro #
G1896860
UPC #
731325792034
Country of Origin
Taiwan, Province of China

Dimensions

Overall Length
74 in
Overall Width
28 3/10 in
Overall Height
50 in
Bed Width
7 12/25 in
Gap Length
9 1/2 in
Overall Depth
68 1/2 in
Leadscrew Size
7/8 in x 8 TPI

Details

Item
Lathe
Phase
Three
Voltage
230V AC
Frequency
60 Hz
Distance Between Centers
40 in
Horsepower
3 hp
Includes
(6) Leveling Pads (Not Shown), 4-Position Carriage Stop (Pre-Installed), 6 in (150 mm) Backplate (Pre-Installed), 6 in Three Jaw Scroll Chuck (Pre-Installed), Follow Rest (Pre-Installed), Splash Guard (Pre-Installed), Steady Rest (Pre-Installed), Tool Box
Tailstock Taper
MT3
Number of Spindle Speeds
Variable
Spindle Bore
1 1/2 in
Number of Inch Threads
34
Max. Threads per Inch
56
Max. Spindle Speed
2,000 RPM
Number of Metric Threads
34
Min. Threads per Inch
2
Max. Metric Thread
12 mm
Application
Metal Turning
Swing In Gap
19 1/2
Min. Metric Thread
0.5 mm
Swing Over Cross Slide
9 1/16 in
Sound Level
60 dB
Min. Spindle Speed
40 RPM
Swing Over Bed
14 in
Spindle Nose Type
D1-4 Camlock
Threads per Inch - Maximum
56
Current
4.2 A, 8.4 A
Spindle Speed - Maximum
2,000 RPM
Includes Taper Attachment
Taper Attachment Included
Maximum Cross Slide Travel
6 1/8 in
Includes Collet Closer
No Collet Closer
Metric Thread - Minimum
0.5 mm
Cross Feed - Maximum
0.015 in/rev
Tailstock Spindle Travel
6 1/8 in
Spindle Nose Taper
D1-4 Camlock
Spindle Speed - Minimum
40 RPM
Longitudinal Feed - Minimum
0.0016 in/rev
Digital Readout Included
Newall DP700
Swing Over Gap
19 1/2 in
Series
EVS-1440
Maximum Carriage Travel
35 1/2 in
Longitudinal Feed - Maximum
0.046 in/rev
Cross Feed - Minimum
0.0005 in/rev
Manufacturer Warranty
Limited
Threads per Inch - Minimum
2
Includes Digital Readout
Digital Readout Included
Maximum Compound Slide Travel
3 1/2 in
Lathe Head Drive
Electronic Variable Speed
Metric Thread - Maximum
12 mm

Description

Lathe, Distance Between Centers 40 in, Voltage 230V AC, Horsepower 3 hp, Min. Spindle Speed 40 RPM, Application Metal Turning, Overall Height 50 in, Overall Length 74 in, Overall Width 28 3/10 in, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT3, Spindle Nose Type D1-4 Camlock
