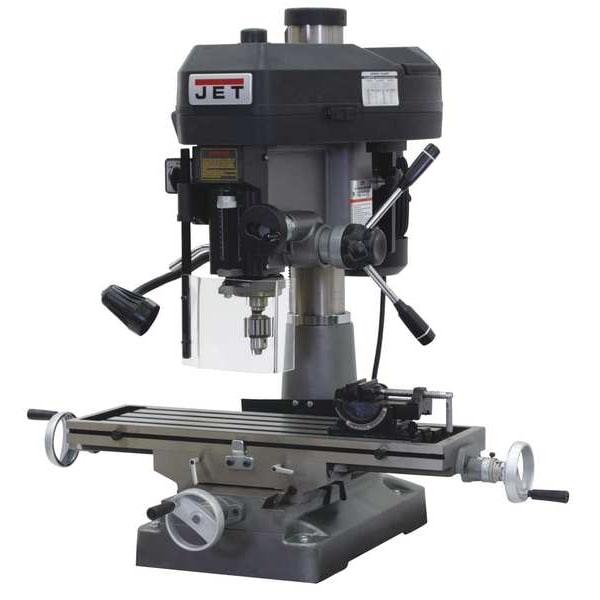

Jet Mill Drill Machine, 2 HP 350018 - main

Mill Drill Machine, 2 HP

  • Mfr # 350018

  • Zoro # G4920386

product price: $4,100.99
/ea
Item requires special delivery charges. A $315.00 per item surcharge will be applied.

Key Features

Swing
15 7/8 in
Voltage
115/230V
RPM
150 to 3000
Drilling Capacity Steel
1 1/4 in
Spindle Speed
150 to 3000 rpm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
350018
Zoro #
G4920386
UPC #
731325503753
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size
1/2 in
Quill Dia.
3 in
Column Dia.
4-1/2 in
Overall Width
40 in
Overall Depth
47 in
Overall Height
51 in
T-Slot Width
5/8 in
Table Work Surface - Width
32 1/4 in
Column Diameter
4 1/2 in
Table Work Surface - Depth
9 1/2 in
Quill Diameter
3 in

Details

Swing
15 7/8 in
Voltage
115/230V
RPM
150 to 3000
Item
Mill Drill
Drilling Capacity Steel
1 1/4 in
Spindle Speed
150 to 3000 rpm
Face Milling Capacity
3 in
Motor HP
2
Phase
Single
Longitudinal Travel
20 1/2 in
Cross Travel
6 1/2 in
Amps
26.0/13.0
End Milling Capacity
3/4 in
T-Slots
5/8"
Motor Type
TEFC - UL LISTED
Operation
Manual
Table Work Surface
9-1/2 x 32-1/4 in
Corded/Banded
Corded
Spindle Travel
5"
Corded/Cordless
Corded
Spindle
R8
Spindle to Table
18"
Features
Base Taper, Belt Cover with Quick Slide Latch, Follows Strict Guidelines and Electrical Requirements to be Certified by CSA Group, UL Listed Motor
Milling and Drilling Machine Product Grouping
Mill/Drill Machines
Head
Belt Drive
Includes
(3) Handle Rods, (3) Handwheels with Handles, (3) Rubber Knobs, 1/2 in Drill Chuck with Chuck Key, 2 1/2 in Angle Vise (JMD-15), 2) Rubber Knobs, 23 mm Wrench, 3 in Angle Vise, 3 mm Hex Wrench, 3/8 in Washer, 3/8 in x 1 in Hex Socket Cap Screw, 4 mm Hex Wrench, 5 mm Hex Wrench, Adjustable Carbide Facemill, Bolts, Can Touch-Up Paint, Crank Body, Crank Handle, Facemill Arbor, Lifting Hook, Nuts, Spindle Guard Assembly, Washers
Hz
60
Spindle Taper
R8
Number of T-Slots
4
Frequency
60 Hz
Power Source
Corded
Speed
150 to 3000 rpm
Motor Horsepower
2
Number of Spindle Speeds
12
Motor Speed - Maximum
3,000 RPM
Column Material
Cast Iron
Maximum Spindle Travel
5 in
Speed Control
Fixed
Series
JMD-18
Spindle Speed - Minimum
150 RPM
Horsepower
2 hp
Maximum Longitudinal Travel
20 1/2 in
Spindle Speed - Maximum
3,000 RPM
Includes Stand
Stand Sold Separately
Head Swivel - Right
360 Degrees
Maximum Cross Travel
7 in
Included Powerfeeds
No Powerfeed
Includes Lights
Light not Included
Manufacturer Warranty
1 yr (Motors, Machine Accessories), 2 yr (Metal Working Machinery, Electric Hoists, Electric Hoist Accessories, Woodworking Machinery), 5 yr (Woodworking Machinery), 90 day (Parts and Consumable Items), Limited Lifetime (JET Parallel Clamps, VOLT Series Electric Hoists, Manual Hoists, Manual Hoist Accessories, Shop Tools, Warehouse, Dock Products, Hand Tools, Air Tools)
Head Material
Belt Drive
Standards
UL
Swing Measurement
15 7/8 in
Includes Chuck
Chuck Included
Spindle to Table Distance
17 1/2 in
Column Shape
Round
Head Swivel - Left
360 Degrees
Milling Head Drive
Belt Drive

Description

The JET 350018 Mill Drill Machine is the high-quality machine that will make your work easier. It comes with a variety of features to help you get the job done quickly and efficiently. With its 2 HP TEF. UL LISTED motor, this mill drill machine has more power than most other models on the market. The belt cover with quick slide latch makes it easy to open and close the cover without any hassle. The base taper provides greater stability while working on heavy pieces of material. This mill drill machine also comes with an R8 spindle taper, which is designed for precision cutting and grinding jobs. The JET 350018 Mill Drill Machine is built to last so you can rely on it in your workshop or factory for years to come.
