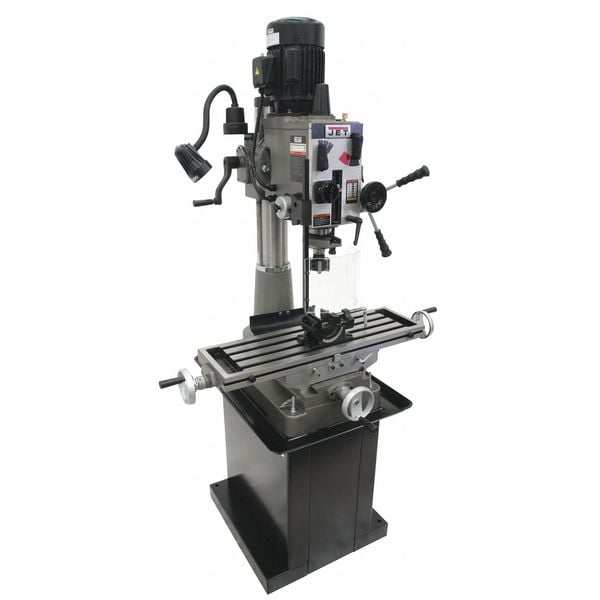

Jet Mill/Drill Machine, Swing 21-7/8" JMD-40GH - main

Mill/Drill Machine, Swing 21-7/8"

  • Mfr # JMD-40GH

  • Zoro # G3939728

product price: $11,978.99
/ea
Item requires special delivery charges. A $250.00 per item surcharge will be applied.

Key Features

Swing
21 7/8 in
Voltage
115/230V
RPM
1720
Drilling Capacity Steel
1 1/4 in
Spindle Speed
130, 1550 rpm, 220, 480, 65, 925
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
JMD-40GH
Zoro #
G3939728
UPC #
731325709094
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size
13 mm
Table Surface Height
10 1/2 in
Column Dia.
4-1/2 in
Quill Dia.
3 in
Overall Width
36 in
Overall Depth
29 in
Overall Height
50 in
T-Slot Width
5/8 in
Quill Diameter
3 in
Table Work Surface - Width
9 1/2 in
Power Cord - Wire Size
12 AWG
T-Slot Depth
1 in
Column Diameter
4 1/2 in
Table Work Surface - Depth
32 1/4 in
Power Cord Length
6 ft

Details

Swing
21 7/8 in
Voltage
115/230V
RPM
1720
Item
Mill Drill
Drilling Capacity Steel
1 1/4 in
Spindle Speed
130, 1550 rpm, 220, 480, 65, 925
Face Milling Capacity
4 in
Lathe Capacity
10 in to 20 in
Motor HP
1-1/2
Phase
Single
Longitudinal Travel
20 1/2 in
Amps
16.8/8.4
End Milling Capacity
3/4 in
Corded/Banded
Corded
Table Work Surface
9-1/2 x 32-1/4 in
T-Slots
5/8"
Hz
60
Includes
(2) Bolts, (2) Drill Arbors, (2) Flat Washers, (2) Hex Nuts, (3) Handwheels, (3) Hex Wrenches, (4) Small Handles, 17 mm/19 mm Box Wrench, 3 in Angle Vise, 3 in Face Mill Cutter Assembly, 3/8 Flat Washer, 3/8 x 1 Socket HD Cap Screw, Crank Handle, Drill Chuck with 13 mm/JT6 Key, Face Mill Cutter Arbor, Mill Drill, Plum Wrench, Product Registration Card, R8-7/16 in Draw Bar, Socket Wrench
Spindle to Table
15 3/4 in
Operation
Powered
Spindle
R8
Corded/Cordless
Corded
Head
Gear Drive
Spindle Travel
5 in
Spindle Taper
R8
Features
CSA/CUS Certified, Easy to Read Internal Depth Gauge Head Tilts Left and Right 90 Degrees , Fine Down Feed Built-In, Full Power to the Cutting Tools Through 6-Speed Geared Head, Heavy Duty Design, Rapid Spindle Speed Changes Through Quickselect Gear Shift Levers, Spindle Guard, Work Lamp Calibrated
Motor Type
Totally Enclosed Fan-Cooled
Number of T-Slots
4
Graduations
0.001 in
Motor Horsepower
1 1/2
Power Source
Corded
Speed
1720 rpm
Frequency
60 Hz
Head Swivel - Left
90 Degrees
Includes Power Downfeed
Power Downfeed Not Included
Standards
CSA/CUS
Maximum Spindle Travel
5 in
Power Cord - Number of Wires
3
Includes Lights
Light not Included
Lathe Capacity - Maximum
20 in
Manufacturer Warranty
1 yr (Motors, Machine Accessories), 2 yr (Metal Working Machinery, Electric Hoists, Electric Hoist Accessories, Woodworking Machinery), 5 yr (Woodworking Machinery), 90 day (Parts, Consumable Items), Limited Lifetime (JET Parallel Clamps, VOLT Series Electric Hoists, Manual Hoists, Manual Hoist Accessories, Shop Tools, Warehouse and Dock Products, Hand Tools, Air Tools)
Number of Spindle Speeds
6
Horsepower
1 1/2 hp
Milling Head Drive
Gear Drive
Spindle Speed - Maximum
1,550 RPM
Sound Level
70 dB
Swing Measurement
21 in
Maximum Cross Travel
8 1/4 in
Drilling Capacity Iron
1 1/2 in
Column Material
Cast Iron
Column Shape
Round
Spindle Speed - Minimum
65 RPM
Current
8.4 A, 16.8 A, 34 A, 68 A
Head Swivel - Right
30 Degrees
Includes Chuck
Chuck Included
Includes Stand
Stand Sold Separately
Head Material
Cast Iron
Spindle to Table Distance
15 3/4 in
Table Material
Cast Iron
Series
JMD-40GH
Motor Speed - Maximum
1,720 RPM
Lathe Capacity - Minimum
10 in
Power Cord Designation
SJT
Includes Digital Readout
Digital Readout Included
Included Powerfeeds
X-Axis Powerfeed
Maximum Longitudinal Travel
20 1/2 in
Speed Control
Fixed

Description

Mill Drill, Phase Single, Swing 21 7/8 in
