  11. Stp Pulley Mill Mchn, 1-1/2HP, 3 PH, 230 V

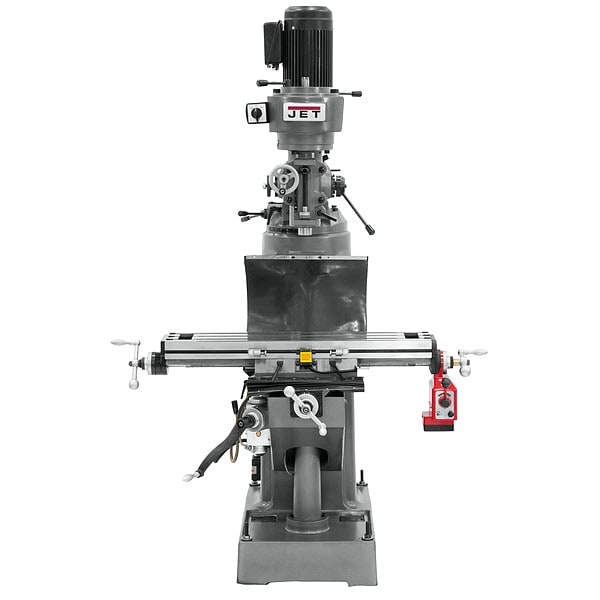

Jet Stp Pulley Mill Mchn, 1-1/2HP, 3 PH, 230 V 690174 - main

Stp Pulley Mill Mchn, 1-1/2HP, 3 PH, 230 V

  • Mfr # 690174

  • Zoro # G9878967

product price: $14,245.99
/ea
Additional $600.00 delivery surcharge applies per item.
See details

Key Features

Table Size (In.)
7-7/8" x 35-3/4"
Voltage
230V
Motor HP
1-1/2
Phase
Three
Longitudinal Travel
18 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
690174
Zoro #
G9878967
UPC #
662755516160
Country of Origin
China

Dimensions

Table Size (In.)
7-7/8" x 35-3/4"
T-Slot Size (In.)
3-5/8"
Overall Depth
55 in
Overall Width
52 in
Quill Dia.
3 3/8 in
Overall Height
78 in
Table Length
7 7/8 in
Table Width
35 3/4 in
Overall Length
52 in
Spindle Travel Length
5 in
Spindle Taper Size
R-8
Ram Travel Length
10-1/2 in
Quill Diameter
3 3/8 in
Table Work Surface - Width
35 3/4 in
Table Work Surface - Depth
7 7/8 in

Details

Voltage
230V
Item
Vertical Milling Machine
Motor HP
1-1/2
Phase
Three
Longitudinal Travel
18 in
Cross Travel
9-1/2 in
Longitudinal Travel (In.)
18.00
Cross Travel (In.)
9-1/2
Spindle Taper
R8
Includes
(4) Handles, 17 mm/19 mm Box Wrench, Adjustable Wrench, Cross Point Screw Driver #2, Draw Bar, Flat Blade Screw Driver #2, Flat Way Cover (Rear), Handwheel, Hex Key Set (1.5 to 10 mm), Knee Crank, Plastic Oil Bottle, Pleated Way Cover (Front)
Features
Precision Bored and Honed Milling Head, Large Diameter Quill is Chromed, High Precision Spindle Bearings, Over 10 in. of Front to Back Ram Travel, Locks on All Movable Surfaces, Hardened and Ground Precision Table, Head Tilts Left or Right, Graduated Scale on Column, Precision Ground Dovetail Ways
Hz
60
Motor Type
Totally Enclosed Fan-Cooled
Number of T-Slots
3
Right-Hand Head Tilt
90 Degrees
Max. Spindle To Column Distance
15-3/4 in
Table Load Capacity
500 lb
Horsepower
1 1/2 hp
Max. Spindle to Table Distance
13 3/4 in
Left-Hand Head Tilt
90 Degrees
Min. Spindle to Column Distance
5-1/4 in
Number of Spindle Speeds
10
Min. Spindle Speed
120 RPM
Max. Spindle Speed
1,550 RPM
Spindle Speed - Maximum
1,550 RPM
Spindle To Column Distance - Maximum
15 3/4 in
Maximum Ram Travel
10 1/2 in
Collet Capacity -Minimum
1/8 in
Maximum Knee Travel
14 in
Included Powerfeeds
X-Axis Powerfeed
Collet Capacity -Maximum
7/8 in
Spindle to Table Distance
13 3/4 in
Includes Digital Readout
No Digital Readout
Series
JVM-836-3
Current
4.7 A, 5.7 A
Spindle to Column Distance - Minimum
5 1/4 in
Sound Level
75 dB
Frequency
60 Hz
Spindle Speed - Minimum
120 RPM
Ram Swivel - Right
90 Degrees
Maximum Cross Travel
9 1/2 in
Ram Swivel - Left
90 Degrees
Motor Speed - Maximum
2.048 RPM
Head Swivel - Left
90 Degrees
Maximum Spindle Travel
5 in
Maximum Longitudinal Travel
22 1/4 in
Manufacturer Warranty
2 yr
Head Swivel - Right
90 Degrees

Description

Vertical Milling Machine, Table Length 7 7/8 in, Table Width 35 3/4 in, 1 1/2 hp, Table Load Capacity 500 lb, Phase Three, Voltage 230V, Longitudinal Travel 18 in, Cross Travel 9-1/2 in, Min. Spindle Speed 120 RPM, Max. Spindle Speed 1,550 RPM
