  6. Var Speed Mill Machine, 1Ph, 2HP, 115/230V

This item is Discontinued.

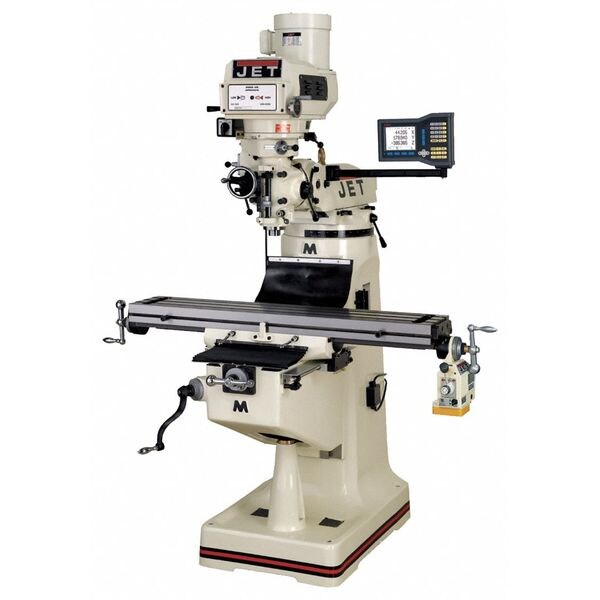

Jet Var Speed Mill Machine, 1Ph, 2HP, 115/230V 690402

Var Speed Mill Machine, 1Ph, 2HP, 115/230V (Discontinued)

  • Mfr # 690402
  • Zoro # G9879037
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
690402
Zoro #
G9879037
UPC #
662755977299
Country of Origin
Taiwan, Province of China

Dimensions

Table Size (In.)
9 x 49
Overall Depth
63 in
T-Slot Size (In.)
0 3/8
Quill Dia. (In.)
3-3/8
Overall Width
65-1/2
Overall Height
85
Quill Dia.
3 3/8 in

Details

Type
Variable Speed R8
Voltage
115/230
Item
Variable Speed Milling Machine
Motor HP
2
Phase
1
Longitudinal Travel
34 in
Cross Travel
12 in
Longitudinal Travel (In.)
34.00
Cross Travel (In.)
12
Knee Travel (In.)
14-1/2
Head Angle Front/Back (Deg.)
46
Spindle Taper
R-8
Number of T-Slots
3
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Features
Meehanite Castings, Precision bored and honed milling head, Large diameter quill is chromed, High precision Class 7 spindle beardings, Chrome plated motor shaft with lower bearing support, 2 year warranty, 30 point inspection
Head Angle (Deg.)
90
Spindle to Table (In.)
17-1/2
Max. Table Weight (lbs.)
660
Hz
60
Quill Travel (In.)
5
Spindle Speed (RPM)
60 to 4200
Includes
2-Axis ACU-RITE VUE, X-Axis Powerfeed , One-Shot Lubrication System, Way Covers, Draw bar, Tool Box With Tools
Ram Travel (In.)
13-3/8

Description

Variable Speed Milling Machine, Phase 1, Voltage 115/230, Longitudinal Travel 34 in, Cross Travel 12 in
