This item is Discontinued.

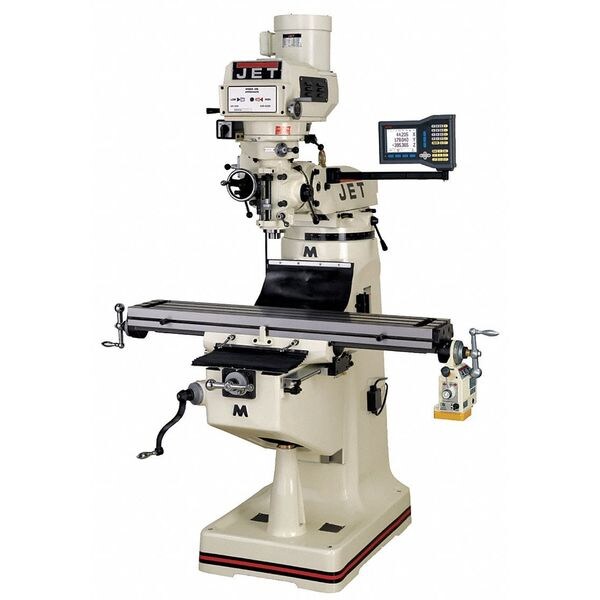

Jet Var Speed Mill Machine, 3Ph, 3HP, 230/460V 690401

Var Speed Mill Machine, 3Ph, 3HP, 230/460V (Discontinued)

  • Mfr # 690401
  • Zoro # G9879055
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
690401
Zoro #
G9879055
UPC #
662755977282
Country of Origin
Taiwan, Province of China

Dimensions

Table Size (In.)
9 x 49
Overall Depth
63"
Overall Height
85
Overall Width
65-1/2
T-Slot Size (In.)
3, 5/8
Quill Dia. (In.)
3-3/8
Quill Dia.
3-3/8"

Details

Type
Variable Speed R8
Voltage
230/460
Item
Variable Speed Milling Machine
Motor HP
3
Phase
3
Longitudinal Travel
34"
Cross Travel
12"
Longitudinal Travel (In.)
34.00
Cross Travel (In.)
12
Knee Travel (In.)
14-1/2
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Spindle to Table (In.)
17-1/2
Includes
2-Axis ACU-RITE VUE, X-Axis Powerfeed , One-Shot Lubrication System, Way Covers, Draw bar, Tool Box With Tools
Spindle Speed (RPM)
60 to 4200
Ram Travel (In.)
13-3/8
Quill Travel (In.)
5
Hz
60
Features
Meehanite Castings, Precision bored and honed milling head, Large diameter quill is chromed, High precision Class 7 spindle beardings, Chrome plated motor shaft with lower bearing support, 2 year warranty, 30 point inspection
Head Angle Front/Back (Deg.)
45
Head Angle (Deg.)
90
Spindle Taper
R-8
Number of T-Slots
3
Max. Table Weight (lbs.)
660

Description

Variable Speed Milling Machine, Phase 3, Voltage 230/460, Longitudinal Travel 34 in, Cross Travel 12 in
