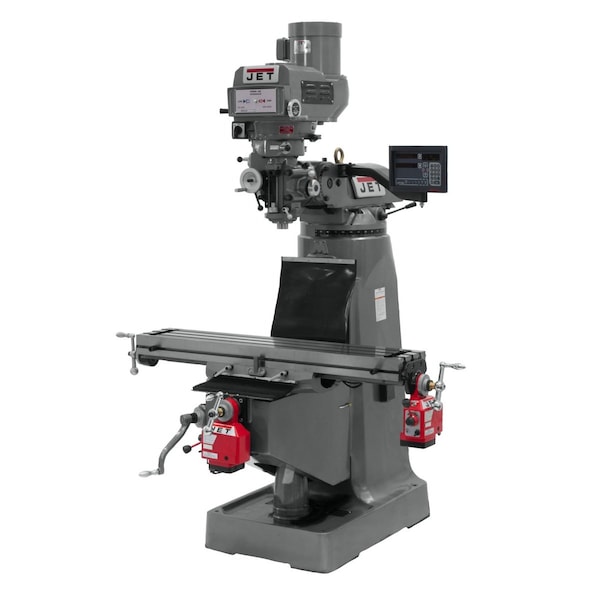

Var Speed Mill Machine, 3Ph, 3HP, 230/460V
- Mfr # 691201
- Zoro # G1940351
product price:Â
$
21,937.99
/ea
Additional $550.00 delivery surcharge applies per item.
Key Features
Type
Variable Speed R8
Table Size (In.)
9 x 49
Voltage
230V, 460V
Motor HP
3 hp
Phase
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 691201
- Zoro #
- G1940351
- UPC #
- 662755513589
- Country of Origin
- Taiwan, Province of China
- Type
- Variable Speed R8
- Voltage
- 230V, 460V
- Item
- Variable Speed Milling Machine
- Motor HP
- 3 hp
- Phase
- 3
- Longitudinal Travel (In.)
- 34.00
- Cross Travel (In.)
- 12
- Knee Travel (In.)
- 14-1/2
- Feed Rate for Power Down Feed (In.)
- 0.0015, 0.003, 0.006
- Features
- Meehanite Castings, Precision bored and honed milling head, Large diameter quill is chromed, High precision Class 7 spindle beardings, Chrome plated motor shaft with lower bearing support, 2 year warranty, 30 point inspection
- Spindle Speed (RPM)
- 60 to 4200
- Max. Table Weight (lbs.)
- 660
- Spindle Taper
- R-8
- Ram Travel (In.)
- 13-3/8
- Hz
- 60 Hz
- Head Angle (Deg.)
- 90
- Includes
- 2-Axis Newall DP700, X and Y-Axis Powerfeed , One-Shot Lubrication System, Way Covers, Draw bar, Tool Box With Tools
- Number of T-Slots
- 3
- Quill Travel (In.)
- 5
- Spindle to Table (In.)
- 17-1/2
- Head Angle Front/Back (Deg.)
- 45
Dimensions
- Table Size (In.)
- 9 x 49
- Quill Dia. (In.)
- 3-3/8
- Overall Depth
- 63
- T-Slot Size (In.)
- 0 3/8
- Overall Height
- 85
- Overall Width
- 65-1/2
Description
Variable Speed Milling Machine, Phase 3, Voltage 230/460
