Shop JET

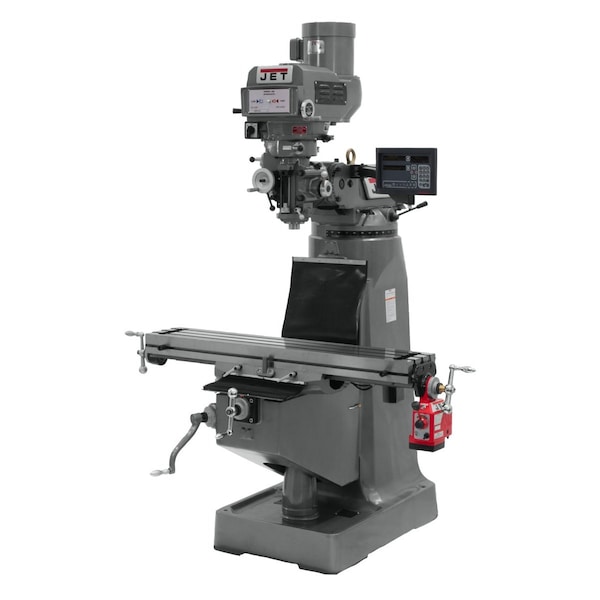

Var Speed Mill Machine, 3Ph, 3HP, 230/460V

  • Mfr # 691232

  • Zoro # G1940561

product price:
$
20,389.99
/ea
Additional $550.00 delivery surcharge applies per item.
See details

Key Features

Type
Variable Speed R8
Table Size (In.)
9 x 49
Voltage
230/460
Motor HP
3 hp
Phase
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
691232
Zoro #
G1940561
UPC #
662755870972
Country of Origin
Taiwan, Province of China

Dimensions

Table Size (In.)
9 x 49
Overall Height
85
Overall Width
65-1/2
Overall Depth
63
T-Slot Size (In.)
0 3/8
Quill Dia. (In.)
3-3/8

Details

Type
Variable Speed R8
Voltage
230/460
Item
Variable Speed Milling Machine
Motor HP
3 hp
Phase
3
Longitudinal Travel (In.)
34.00
Cross Travel (In.)
12
Knee Travel (In.)
14-1/2
Number of T-Slots
3
Head Angle (Deg.)
90
Includes
3 (Knee)-Axis Newall DP700, X-Axis Powerfeed , One-Shot Lubrication System, Way Covers, Draw bar, Tool Box With Tools
Hz
60
Head Angle Front/Back (Deg.)
45
Spindle to Table (In.)
17-1/2
Spindle Taper
R-8
Spindle Speed (RPM)
60 to 4200
Quill Travel (In.)
5
Ram Travel (In.)
13-3/8
Features
Meehanite Castings, Precision bored and honed milling head, Large diameter quill is chromed, High precision Class 7 spindle beardings, Chrome plated motor shaft with lower bearing support, 2 year warranty, 30 point inspection
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Max. Table Weight (lbs.)
660

Description

Variable Speed Milling Machine, Phase 3, Voltage 230/460
