  11. Var Speed Mill Mchn, 3 HP, 3 PH, 230/460 V

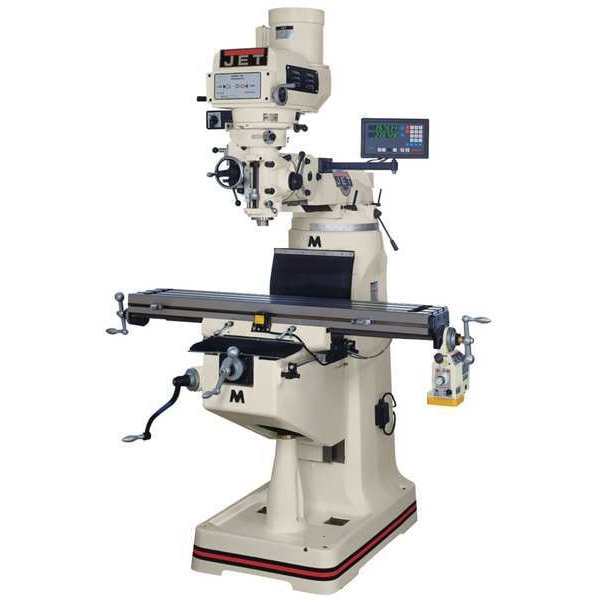

Jet Var Speed Mill Mchn, 3 HP, 3 PH, 230/460 V 690098 - main

Var Speed Mill Mchn, 3 HP, 3 PH, 230/460 V

  • Mfr # 690098

  • Zoro # G9879107

product price: $23,013.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Voltage
230/460V
Motor HP
3
Phase
Three
Longitudinal Travel
34 in
Cross Travel
12 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
690098
Zoro #
G9879107
UPC #
662755515934
Country of Origin
Taiwan, Province of China

Dimensions

Quill Dia.
3 3/8 in
Overall Height
85 in
Overall Width
63 in
Overall Depth
66 in
Table Length
9 in
Spindle Taper Size
R-8
Ram Travel Length
13-3/8 in
Overall Length
63 in
Table Width
49 in
Spindle Travel Length
5 in
Table Work Surface - Width
49 in
Quill Diameter
3 3/8 in
T-Slot Depth
3/4 in
T-Slot Width
5/8 in
Table Work Surface - Depth
9 in

Details

Voltage
230/460V
Item
Vertical Milling Machine
Motor HP
3
Phase
Three
Longitudinal Travel
34 in
Cross Travel
12 in
Hz
60
Spindle Taper
R8
Features
Mechanize Casting, Precision Bored and Honed Milling Head, Large Diameter Quill is Chromed, High Precision Class 7 Spindle Bearings, Spindle Head is Internally Cooled, Satin Chrome Finished Dials, Heavy duty Splined Motor Drive, one piece Quill Pinion and Shaft, Three stage Power Down Feed with Automatic Stop, Three stage Power Down Feed with Automatic Stop, Heavy duty Spindle Brake, Precision Hardened and Ground Ways, Precision Ground Table, Adjustable Gibbs Throughout, Internal Coolant Tank Built Into Base for Use with Coolant System (coolant Pump Not Included)
Includes
(3) Table Adjustment Handles, 17 mm/19 mm Box Wrench, Can White Touch Up Paint, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Elevating Crank Handle, Eye Bolt, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Plastic Oil Bottle, Pleated Way Cover
Number of T-Slots
3
Motor Type
Totally Enclosed Fan-Cooled
Left-Hand Head Tilt
90 Degrees
Forward Head Tilt
45 Degrees
Min. Spindle Speed
60 RPM
Max. Spindle To Column Distance
19 in
Number of Spindle Speeds
Variable
Table Load Capacity
660 lb
Right-Hand Head Tilt
90 Degrees
Horsepower
3 hp
Max. Spindle to Table Distance
17 1/2 in
Backward Head Tilt Adjustment
45 Degrees
Max. Spindle Speed
4,200 RPM
Min. Spindle to Column Distance
4-1/2 in
Drawbar Style
Manual
Included Powerfeeds
X-Axis Powerfeed, Y-Axis Powerfeed
Spindle to Table Distance
17 1/2 in
Maximum Spindle Travel
5 in
Frequency
60 Hz
Spindle Speed - Minimum
60 RPM
Maximum Longitudinal Travel
34 in
Collet Capacity -Minimum
1/8 in
Includes Digital Readout
Digital Readout Included
Head Swivel - Right
90 Degrees
Spindle To Column Distance - Maximum
19 in
Maximum Knee Travel
14 1/2 in
Manufacturer Warranty
2 yr
Maximum Cross Travel
12 in
Series
JTM-4VS
Digital Readout Included
Acu-Rite 203
Head Tilt - Forward
45 Degrees
Spindle Speed - Maximum
4,200 RPM
Maximum Ram Travel
13 3/8 in
Collet Capacity -Maximum
7/8 in
Head Swivel - Left
90 Degrees
Spindle to Column Distance - Minimum
4 1/2 in
Head Tilt - Backward
45 Degrees

Description

Vertical Milling Machine, Table Length 9 in, Table Width 49 in, 3 hp, Table Load Capacity 660 lb, Phase Three, Voltage 230/460V, Longitudinal Travel 34 in, Cross Travel 12 in, Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,200 RPM
