  11. Var Speed Mill Mchn, 3 HP, 3 PH, 230/460 V

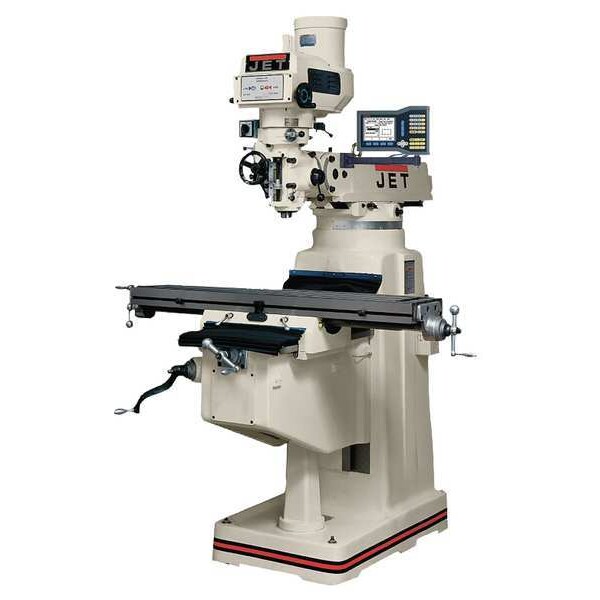

Jet Var Speed Mill Mchn, 3 HP, 3 PH, 230/460 V 691205 - main

Var Speed Mill Mchn, 3 HP, 3 PH, 230/460 V

  • Mfr # 691205

  • Zoro # G9879186

product price: $24,002.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Voltage
230/460V
Motor HP
3
Phase
Three
Longitudinal Travel
35 in
Cross Travel
15-1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
691205
Zoro #
G9879186
UPC #
662755513602
Country of Origin
Taiwan, Province of China

Dimensions

Overall Width
78 in
Overall Depth
96 in
Overall Height
88 in
Quill Dia.
3 3/8 in
Overall Length
78 in
Spindle Travel Length
5 in
Ram Travel Length
20-1/2 in
Table Width
50 in
Spindle Taper Size
R-8
Table Length
10 in
Table Work Surface - Width
50 in
Quill Diameter
3 3/8 in
T-Slot Width
5/8 in
Table Work Surface - Depth
10 in

Details

Voltage
230/460V
Item
Vertical Milling Machine
Motor HP
3
Phase
Three
Longitudinal Travel
35 in
Cross Travel
15-1/4 in
Includes
17 mm/19 mm Box Wrench, Can White Touch up Paint, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Elevating Crank Handle, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Lifting Ring, Plastic Oil Bottle, Pleated Way Cover, Table Adjustment Handles, Tool Box
Hz
60
Spindle Taper
R8
Features
Mechanize Casting, Hardened and Ground Table, Chrome Lead Screws on X and Y Axis, Turcite B on X and Y Axis, Satin Chrome Finish on Dials, Precision Bored and Honed Milling Head, Large Diameter Quill is Chromed, High Precision Class 7 Spindle Bearing, Spindle Head is Internally Cooled, No Fuse Breaker Power Connection, Heavy Duty Motor Drive, Chrome Plated Motor Shaft with Bearing Support at End, one Piece Quill Pinion and Shaft, Three Stage Power Down Feed with Automatic Stop, Heavy Duty Spindle Break, Locks on All Movable Surfaces, Hardened and Ground Square Vertical Knee Ways, Adjustable Gibbs Throughout, Internal Coolant Tank Built Into Base for Use with Coolant System (coolant Pump Not Included)
Motor Type
Totally Enclosed Fan-Cooled
Number of T-Slots
3
Max. Spindle To Column Distance
26 in
Left-Hand Head Tilt
90 Degrees
Horsepower
3 hp
Max. Spindle to Table Distance
19 in
Table Load Capacity
720 lb
Number of Spindle Speeds
Variable
Forward Head Tilt
45 Degrees
Backward Head Tilt Adjustment
45 Degrees
Min. Spindle to Column Distance
5-1/2 in
Max. Spindle Speed
3,800 RPM
Right-Hand Head Tilt
90 Degrees
Min. Spindle Speed
70 RPM
Series
JTM-1050VS2
Maximum Spindle Travel
5 in
Maximum Cross Travel
15 1/4 in
Standards
CSA/CUS
Digital Readout Included
Newall DP700
Head Swivel - Left
90 Degrees
Head Tilt - Backward
45 Degrees
Spindle To Column Distance - Maximum
26 in
Maximum Longitudinal Travel
35 in
Spindle to Table Distance
19 in
Collet Capacity -Maximum
7/8 in
Motor Speed - Maximum
1,720 RPM
Manufacturer Warranty
2 yr
Maximum Ram Travel
20 1/2 in
Included Powerfeeds
X-Axis Powerfeed
Drawbar Style
Manual
Maximum Knee Travel
14 1/4 in
Milling Head Drive
Belt Drive
Includes Digital Readout
Digital Readout Included
Current
4.1 A, 8.2 A
Head Swivel - Right
90 Degrees
Sound Level
75 dB
Spindle Speed - Maximum
3,800 RPM
Collet Capacity -Minimum
1/8 in
Spindle to Column Distance - Minimum
5 1/2 in
Head Tilt - Forward
45 Degrees
Frequency
60 Hz
Spindle Speed - Minimum
70 RPM

Description

Vertical Milling Machine, Table Length 10 in, Table Width 50 in, 3 hp, Table Load Capacity 720 lb, Phase Three, Voltage 230/460V, Longitudinal Travel 35 in, Cross Travel 15-1/4 in, Min. Spindle Speed 70 RPM, Max. Spindle Speed 3,800 RPM
