  11. Var Speed Mill Mchn, 3 HP, 3 PH, 230/460 V

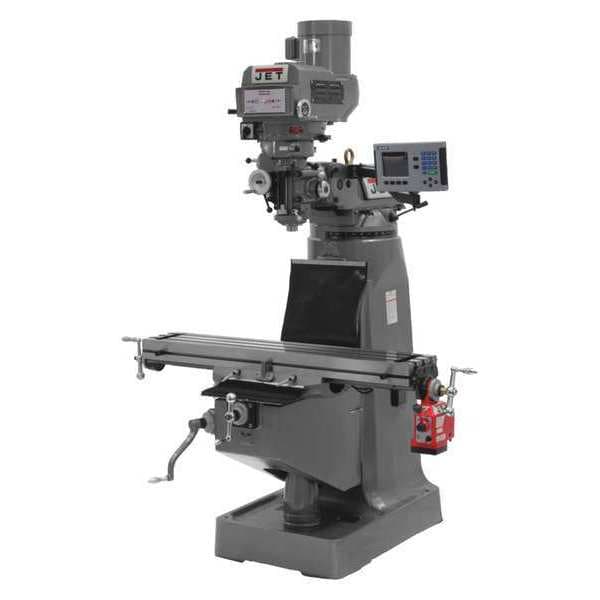

Jet Var Speed Mill Mchn, 3 HP, 3 PH, 230/460 V 690107 - main

Var Speed Mill Mchn, 3 HP, 3 PH, 230/460 V

  • Mfr # 690107

  • Zoro # G9879082

product price: $21,436.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Table Size (In.)
9 x 49
Voltage
230/460V
Motor HP
3
Phase
Three
Longitudinal Travel
34 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
690107
Zoro #
G9879082
UPC #
662755810169
Country of Origin
Taiwan, Province of China

Dimensions

Table Size (In.)
9 x 49
T-Slot Size (In.)
3,5/8
Overall Height
85 in
Overall Width
63 in
Quill Dia.
3 3/8 in
Overall Depth
66 in
Table Width
49 in
Table Length
9 in
Spindle Taper Size
R-8
Spindle Travel Length
5 in
Overall Length
63 in
Ram Travel Length
13-3/8 in
Quill Diameter
3 3/8 in
T-Slot Depth
3/4 in
Table Work Surface - Depth
9 in
Table Work Surface - Width
49 in
T-Slot Width
5/8 in

Details

Voltage
230/460V
Item
Vertical Milling Machine
Motor HP
3
Phase
Three
Longitudinal Travel
34 in
Cross Travel
12 in
Longitudinal Travel (In.)
34.00
Cross Travel (In.)
12
Includes
(3) Table Adjustment Handles, 17 mm/19 mm Box Wrench, Can White Touch Up Paint, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Elevating Crank Handle, Eye Bolt, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Plastic Oil Bottle, Pleated Way Cover
Spindle Taper
R8
Features
Mechanize Casting, Precision Bored and Honed Milling Head, Large Diameter Quill is Chromed, High Precision Class 7 Spindle Bearings, Spindle Head is Internally Cooled, Satin Chrome Finished Dials, Heavy duty Splined Motor Drive, one piece Quill Pinion and Shaft, Three stage Power Down Feed with Automatic Stop, Three stage Power Down Feed with Automatic Stop, Heavy duty Spindle Brake, Precision Hardened and Ground Ways, Precision Ground Table, Adjustable Gibbs Throughout, Internal Coolant Tank Built Into Base for Use with Coolant System (coolant Pump Not Included)
Spindle Speed (RPM)
60-4200
Hz
60
Motor Type
Totally Enclosed Fan-Cooled
Number of T-Slots
3
Min. Spindle Speed
60 RPM
Right-Hand Head Tilt
90 Degrees
Max. Spindle To Column Distance
19 in
Forward Head Tilt
45 Degrees
Horsepower
3 hp
Backward Head Tilt Adjustment
45 Degrees
Left-Hand Head Tilt
90 Degrees
Max. Spindle to Table Distance
17 1/2 in
Number of Spindle Speeds
Variable
Max. Spindle Speed
4,200 RPM
Table Load Capacity
660 lb
Min. Spindle to Column Distance
4-1/2 in
Maximum Ram Travel
13 3/8 in
Spindle to Column Distance - Minimum
4 1/2 in
Maximum Cross Travel
12 in
Head Swivel - Right
90 Degrees
Collet Capacity -Minimum
1/8 in
Head Tilt - Forward
45 Degrees
Drawbar Style
Manual
Collet Capacity -Maximum
7/8 in
Spindle Speed - Minimum
60 RPM
Spindle To Column Distance - Maximum
19 in
Spindle Speed - Maximum
4,200 RPM
Head Tilt - Backward
45 Degrees
Manufacturer Warranty
2 yr
Series
JTM-4VS
Digital Readout Included
Acu-Rite 203
Includes Digital Readout
Digital Readout Included
Maximum Longitudinal Travel
34 in
Head Swivel - Left
90 Degrees
Maximum Knee Travel
14 1/2 in
Maximum Spindle Travel
5 in
Included Powerfeeds
X-Axis Powerfeed
Spindle to Table Distance
17 1/2 in
Frequency
60 Hz

Description

Vertical Milling Machine, Table Length 9 in, Table Width 49 in, 3 hp, Table Load Capacity 660 lb, Phase Three, Voltage 230/460V, Longitudinal Travel 34 in, Cross Travel 12 in, Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,200 RPM
