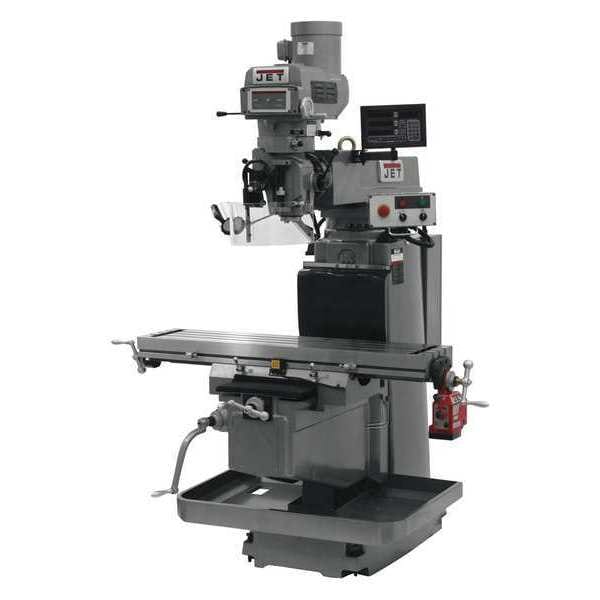

Jet Vertical Milling Machine, 4-1/8" Quill 698067 - main

Vertical Milling Machine, 4-1/8" Quill

  • Mfr # 698067

  • Zoro # G7686108

product price: $30,334.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Type
Variable Speed NT40
Table Size (In.)
12 x 54
Voltage
230/460V
Motor HP
5
Phase
Three
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
698067
Zoro #
G7686108
UPC #
731325516265
Country of Origin
Taiwan, Province of China

Dimensions

Table Size (In.)
12 x 54
Quill Dia. (In.)
4-1/8
Overall Depth
59 in
T-Slot Size (In.)
3-5/8
Overall Width
82 in
Overall Height
96 1/2 in
Quill Dia.
4 1/8 in
Table Length
12 in
Spindle Taper Size
NT40
Table Width
54 in
Ram Travel Length
25 in
Spindle Travel Length
5 in
Overall Length
79-7/8 in
Quill Diameter
4 1/8 in
Column Width
14 1/4 in
Table Work Surface - Depth
12 in
T-Slot Depth
3/4 in
Table Work Surface - Width
54 in
T-Slot Width
5/8 in

Details

Type
Variable Speed NT40
Voltage
230/460V
Item
Vertical Milling Machine
Motor HP
5
Phase
Three
Longitudinal Travel
33-7/8 in
Longitudinal Travel (In.)
33.88
Cross Travel (In.)
15-21/64
Knee Travel (In.)
19-1/4
Number of T-Slots
3
Quill Travel (In.)
5
Head Angle (Deg.)
90
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Head Angle Front/Back (Deg.)
45
Includes
Variable Speed Vertical Milling Machine, DP700 DRO, X Power Feed, Spindle Safety Guard, Led Machine Lamp, Dual Locks On All Moveable Surfaces, Chip Pan, Draw Bar, Tool Box with Tools
Ram Travel (In.)
25
Spindle to Table (In.)
23
Spindle Speed (RPM)
80 to 3800
Max. Table Weight (lbs.)
925
Ram Swivel (Deg.)
90
Hz
60
Spindle Taper
NT40
Features
Certified Meehanite(R) Castings, Precision Bored and Honed Milling Head, High Precision Class 7 Spindle Bearings, Quick Spindle Feed Nut, Three-Stage Power Down feed with Automatic Atop, Heavy-Duty Spindle Brake, Three Precision Ground T-Slots, CSA, CUS, Following Strict Guidelines and Electrical Requirements, These JET Mills are CSA, CUS Certified
Motor Type
Totally Enclosed Fan-Cooled
Max. Spindle Speed
3,800 RPM
Min. Spindle to Column Distance
7-1/2 in
Horsepower
5 hp
Min. Spindle to Table Distance
23 in
Max. Spindle To Column Distance
27-3/4 in
Table Load Capacity
925 lb
Max. Spindle to Table Distance
23 in
Number of Spindle Speeds
Variable
Min. Spindle Speed
80 RPM
Left-Hand Head Tilt
90 Degrees
Right-Hand Head Tilt
90 Degrees
Ram Turret Swivel
90 Degrees
Collet Capacity -Maximum
1 in
Current
6.5 A, 13 A
Manufacturer Warranty
2 yr
Maximum Cross Travel
15 5/16 in
Frequency
60 Hz
Spindle Speed - Maximum
3,800 RPM
Spindle to Table Distance
23 in
Spindle to Column Distance - Minimum
7 1/2 in
Motor Speed - Maximum
1,720 RPM
Includes Digital Readout
Digital Readout Included
Series
JTM-1254VS
Collet Capacity -Minimum
1/8 in
Maximum Ram Travel
25 in
Maximum Knee Travel
19 1/4 in
Standards
CSA/CUS
Digital Readout Included
Newall DP700
Maximum Longitudinal Travel
33 7/8 in
Spindle To Column Distance - Maximum
27 3/4 in
Included Powerfeeds
X-Axis Powerfeed
Sound Level
72 dB
Head Swivel - Right
90 Degrees
Head Swivel - Left
90 Degrees
Maximum Spindle Travel
5 in
Spindle Speed - Minimum
80 RPM

Description

Vertical Milling Machine, Table Length 12 in, Table Width 54 in, 5 hp, Table Load Capacity 925 lb, Phase Three, Voltage 230/460V, Longitudinal Travel 33-7/8 in, Min. Spindle Speed 80 RPM, Max. Spindle Speed 3,800 RPM
