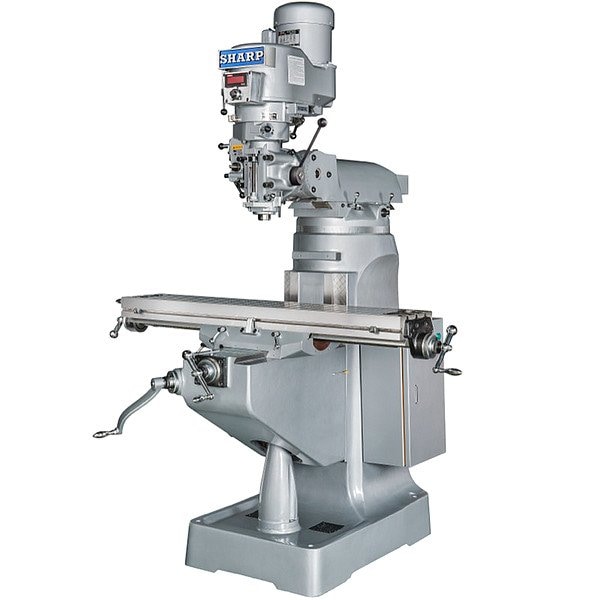

Milling Machine, Manual Drawbar, 3 hp

  • Mfr # LMV-49-DVS
  • Zoro # G016004112
product price:
$
21,445.99
/ea
Additional $1,800.00 delivery surcharge applies per item.
See details

Key Features

Maximum Cross Travel
12 in
Included Powerfeeds
No Powerfeed
Spindle Speed - Maximum
4,500 RPM
Motor Speed - Maximum
4,500 RPM
Right-Hand Head Tilt
45 Degrees
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LMV-49-DVS
Zoro #
G016004112
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Table Work Surface - Width
49 in
Quill Diameter
3 3/8 in
Table Work Surface - Depth
9 in
T-Slot Width
5/8 in

Details

Item
Milling Machine
Maximum Cross Travel
12 in
Included Powerfeeds
No Powerfeed
Spindle Speed - Maximum
4,500 RPM
Motor Speed - Maximum
4,500 RPM
Right-Hand Head Tilt
45 Degrees
Table Load Capacity
660 lb
Phase
Single/Three
Head Tilt - Backward
45 Degrees
Spindle to Table Distance
18 in
Current
8 A
Maximum Spindle Travel
5 in
Maximum Longitudinal Travel
37 in
Number of Spindle Speeds
Variable
Maximum Ram Travel
12 in
Series
LMV-50
Spindle To Column Distance - Maximum
18 1/2 in
Milling Head Drive
Gear Drive
Spindle Taper
R8
Spindle Speed - Minimum
65 RPM
Number of T-Slots
3
Maximum Knee Travel
16 in
Head Tilt - Forward
45 Degrees
Standards
ISO-9002
Spindle to Column Distance - Minimum
6 3/4 in
Head Swivel - Left
45 Degrees
Voltage
208 or 230 V AC
Includes Digital Readout
No Digital Readout
Head Swivel - Right
45 Degrees
Drawbar Style
Manual
Horsepower
3 hp
T-Slot Pitch
2 1/2 in

Description

Milling Machine
