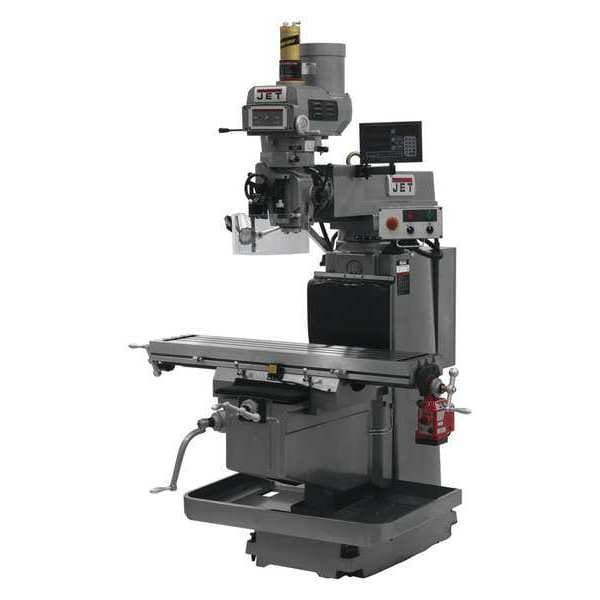

Jet Vertical Milling Machine, 4-1/8" Quill 698068 - main

Vertical Milling Machine, 4-1/8" Quill

  • Mfr # 698068

  • Zoro # G7686038

product price: $33,794.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Type
Variable Speed NST40
Table Size (In.)
12 x 54
Voltage
230/460V
Motor HP
5
Phase
Three
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
698068
Zoro #
G7686038
UPC #
731325516272
Country of Origin
Taiwan, Province of China

Dimensions

Table Size (In.)
12 x 54
Overall Width
82 in
Overall Height
96 1/2 in
Quill Dia. (In.)
4-1/8
T-Slot Size (In.)
3-5/8
Overall Depth
59 in
Quill Dia.
4 1/8 in
Spindle Travel Length
5 in
Ram Travel Length
25 in
Table Width
54 in
Table Length
12 in
Overall Length
79-7/8 in
Spindle Taper Size
NST40
Quill Diameter
4 1/8 in
Table Work Surface - Depth
12 in
Table Work Surface - Width
54 in
Column Width
14 1/4 in
T-Slot Width
5/8 in
T-Slot Depth
3/4 in

Details

Type
Variable Speed NST40
Voltage
230/460V
Item
Vertical Milling Machine
Motor HP
5
Phase
Three
Longitudinal Travel
33-7/8 in
Longitudinal Travel (In.)
33.88
Cross Travel (In.)
15-21/64
Knee Travel (In.)
19-1/4
Spindle Taper
NT40
Head Angle (Deg.)
90
Hz
60
Quill Travel (In.)
5
Includes
Variable Speed Vertical Milling Machine, DP700 DRO, X Power Feed and Power Draw Bar, Spindle Safety Guard, Led Machine Lamp, Dual Locks on All Moveable Surfaces, Chip Pan, Draw Bar, Tool Box with Tools
Spindle Speed (RPM)
80 to 3800
Number of T-Slots
3
Head Angle Front/Back (Deg.)
45
Ram Travel (In.)
25
Features
Certified Meehanite(R) Castings, Precision Bored and Honed Milling Head, High Precision Class 7 Spindle Bearings, Quick Spindle Feed Nut, Three-Stage Power Down feed with Automatic Atop, Heavy-Duty Spindle Brake, Three Precision Ground T-Slots, CSA, CUS, Following Strict Guidelines and Electrical Requirements, These JET Mills are CSA, CUS Certified
Max. Table Weight (lbs.)
925
Spindle to Table (In.)
23
Ram Swivel (Deg.)
90
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Motor Type
Totally Enclosed Fan-Cooled
Min. Spindle to Column Distance
7-1/2 in
Min. Spindle Speed
80 RPM
Max. Spindle Speed
3,800 RPM
Horsepower
5 hp
Ram Turret Swivel
90 Degrees
Number of Spindle Speeds
Variable
Table Load Capacity
925 lb
Min. Spindle to Table Distance
23 in
Max. Spindle To Column Distance
27-3/4 in
Max. Spindle to Table Distance
23 in
Left-Hand Head Tilt
90 Degrees
Right-Hand Head Tilt
90 Degrees
Current
6.5 A, 13 A
Manufacturer Warranty
2 yr
Spindle Speed - Minimum
80 RPM
Digital Readout Included
Newall DP700
Maximum Ram Travel
25 in
Included Powerfeeds
X-Axis Powerfeed
Head Swivel - Left
90 Degrees
Sound Level
72 dB
Collet Capacity -Minimum
1/8 in
Standards
CSA/CUS
Includes Digital Readout
Digital Readout Included
Head Swivel - Right
90 Degrees
Spindle to Column Distance - Minimum
7 1/2 in
Spindle to Table Distance
23 in
Maximum Knee Travel
19 1/4 in
Collet Capacity -Maximum
1 in
Frequency
60 Hz
Spindle To Column Distance - Maximum
27 3/4 in
Maximum Longitudinal Travel
33 7/8 in
Series
JTM-1254VS
Spindle Speed - Maximum
3,800 RPM
Maximum Cross Travel
15 5/16 in
Drawbar Style
Air-Powered
Maximum Spindle Travel
5 in
Motor Speed - Maximum
1,720 RPM

Description

Vertical Milling Machine, Table Length 12 in, Table Width 54 in, 5 hp, Table Load Capacity 925 lb, Phase Three, Voltage 230/460V, Longitudinal Travel 33-7/8 in, Min. Spindle Speed 80 RPM, Max. Spindle Speed 3,800 RPM
