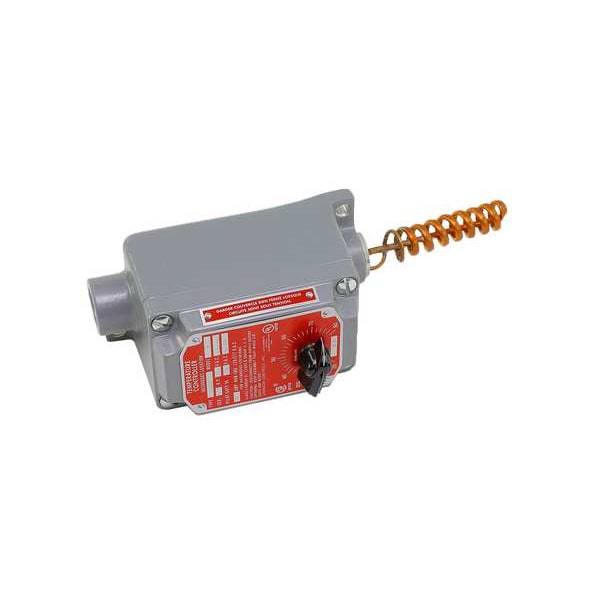

Johnson Controls Control, 120/208/240/277V AC, 20 Degrees F, Rectangle A19BUC-2 - main

Control, 120/208/240/277V AC, 20 Degrees F, Rectangle

  • Mfr # A19BUC-2

  • Zoro # G503677034

product price: $760.99
/ea
Free Shipping & Returns

Key Features

Voltage
120/208/240/277V AC
Stages
1C, 1H
Standards
CSA Certified, UL Listed
Sensor Type
Coiled Bulb Thermostat
Control Type
External Knob
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
A19BUC-2
Zoro #
G503677034
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Width
6 1/16 in
Overall Depth
3 15/16 in
Overall Height
3 in
Mounting Hole Diameter
1/2 in
Capillary Length
6 ft
Bulb Length
2 1/2 in

Details

Item
CONTROL
Voltage
120/208/240/277V AC
Stages
1C, 1H
Standards
CSA Certified, UL Listed
Sensor Type
Coiled Bulb Thermostat
Control Type
External Knob
Number of Relay Inputs
1
Contact Rating
120/277V AC
Minimum Control Temperature
20 Degrees F
Application
Heat and Cool
Temperature Scale
Celsius, Fahrenheit
Pilot Duty Rating
125 VA @ 24 to 600V AC
Maximum Control Temperature
80 Degrees F
Temperature Control Range
20 Degrees to 80 Degrees F
Electrical Connection Type
Screw Terminals
Battery Type
Value
Differential Type
Fixed
Compatible System Type
SPDT Coiled Bulb
Temperature Differential
3.5 Degrees F
Shape
Rectangle
Changeover Type
Manual
Thermostat Type
Fixed Differential
Operating Humidity Range
No
Mounting Direction
Vertical
Fan Settings
No Fan Setting
Inductive Amps @ 208V
9.2 A
Hazardous Location Division
Division 1
Full Load Amps @ 240V AC
8 A
Full Load Amps @ 120V AC
16 A
Hazardous Location Class
D, E, F, G
Inductive Amps @ 240V
8 A
Number of Switches
1
Number of Cooling Stages
1
Number of Heating Stages
1
Contact Type
Snap Action
Enclosure Material
Aluminum
Locked Rotor Amps @ 120V
96 A
Enclosure Color
Natural
Fan Delay
No
Switch Type
SPDT
Locked Rotor Amps @ 240V
48 A
Number of Poles
1
Inductive Amps @ 120V
16 A
Enclosure NEMA Rating
7, 9
Enclosure Finish
Natural Aluminum
Switch Action
Close on Rise; Open on Rise
Switch Type/Action
SPDT/Snap Action

Description

CONTROL
