  11. Elec Act, 35 in.-lb., Floating, 24VAC

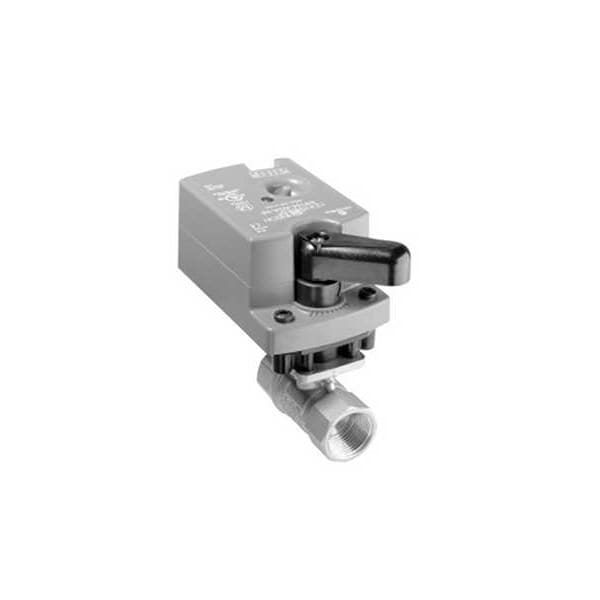

Johnson Controls Elec Act, 35 in.-lb., Floating, 24VAC VA9104-AGA-2S - main

Elec Act, 35 in.-lb., Floating, 24VAC

  • Mfr # VA9104-AGA-2S

  • Zoro # G5072426

product price: $130.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V AC
Signal Type
Floating
Torque
35 in-lb
Cycle Time
72 sec
Ambient Temp. Range
To 140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VA9104-AGA-2S
Zoro #
G5072426
UPC #
-
Country of Origin
Mexico

Dimensions

Height
2 in
Depth
2 3/4 in
Width
5 in
Overall Depth
2 3/4 in
Electrical Lead Length
4 ft
Stroke Length
Not Rated
Overall Height
2 in
Overall Width
5 in

Details

Item
Electric Ball Valve Actuator
Voltage
24V AC
Signal Type
Floating
Torque
35 in-lb
Cycle Time
72 sec
Ambient Temp. Range
To 140 Degrees F
Stroke Deg.
90
Electrical Connections
Cable
Power Consumption
2.3 VA
For Use With
VG 1000 Ball Valves
Includes
Valve Linkage
Type of Actuator
Non-Spring Return
Application
Air Conditioning, Heating, Ventilation
Mounting Style
Direct Mount
Standards
CCN XAPX File 27734 Plenum Rated, NEC Section 300.22.(c), UL 2043
Product Type
Electric Ball Valve Actuator
Operating Temperature - Minimum
-4 Degrees F
Compatible Manufacturer Model Number
VG1241AA+9A4AGA, VG1241AB+9A4AGA, VG1241AC+9A4AGA, VG1241AD+9A4AGA, VG1241AE+9A4AGA, VG1241AF+9A4AGA, VG1241AG+9A4AGA, VG1241AL+9A4AGA, VG1241AN+9A4AGA, VG1241BG+9A4AGA, VG1241BL+9A4AGA, VG1241BN+9A4AGA, VG1241CL+9A4AGA, VG1241CN+9A4AGA, VG1241CP+9A4AGA
Control Signal
Floating Point, On/Off
Compatible Series
VG1000
Compatible Valve Body Pattern
Three-Way
Compatible Valve Action
Normally Open
Operating Temperature - Maximum
140 Degrees F
NEMA Rating
2
Electrical Connection Type
Cable
Frequency
50/60 Hz
Stroke Degree
93 Degrees
Includes Electrical Leads
Electrical Leads Included
Compatible Brand
Johnson Controls
Return Action
Non-Spring Return
Number of Auxiliary Switches
0
Shaft Type
Integrated Shaft for Valve
Power Rating
2.1VA

Description

Electric Ball Valve Actuator, Application Air Conditioning, Heating, Ventilation, Compatible Brand Johnson Controls, Compatible Manufacturer Model Number VG1241AA+9A4AGA, VG1241AB+9A4AGA, VG1241AC+9A4AGA, VG1241AD+9A4AGA, VG1241AE+9A4AGA, VG1241AF+9A4AGA, VG1241AG+9A4AGA, VG1241AL+9A4AGA, VG1241AN+9A4AGA, VG1241BG+9A4AGA, VG1241BL+9A4AGA, VG1241BN+9A4AGA, VG1241CL+9A4AGA, VG1241CN+9A4AGA, VG1241CP+9A4AGA, Compatible Series VG1000, Compatible Valve Action Normally Open
