Johnson Controls

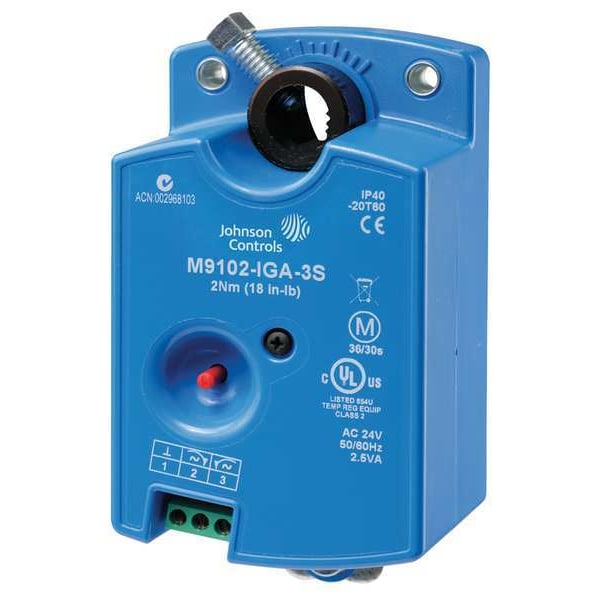

Electric Actuator, On/Off, Floating, 24V

product price: $111.33
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Type Direct Mount
  • Spring Return Non-Spring Return
  • Signal Type Floating Point with Timeout, On/Off
  • Torque 18 in-lb
  • Voltage 24V AC
See all product information

Product Information

Dimensions

Width 2 13/16 in
Height 5 5/32 in
Depth 2 1/4 in
Overall Width 2 7/8 in
Overall Height 5 1/8 in
Overall Depth 2 1/4 in

Details

Mounting Type Direct Mount
Spring Return Non-Spring Return
Signal Type Floating Point with Timeout, On/Off
Torque 18 in-lb
Voltage 24V AC
Electrical Connections Screw Terminals
Item Actuator
Power Consumption 2.6 VA
Timing 30 sec
Motor Direction CW or CCW
Shaft Type Self-Centering Clamping
Includes Anti-Rotation Bracket
Stroke Deg. 90
Ambient Temp. Range -4 Degrees to 140 Degrees F
For Use With Dampers and Valves
Stroke Degree 90 Degrees
Maximum Operating Temperature 140 Degrees F
Valve Application Damper
Minimum Operating Temperature -4 Degrees F
IP Rating IP42
For Use With Building Automation Systems Building Automation System Compatible
Time to Close 30 sec
NEMA Rating 2
Rated Torque 18 in-lb
Shaft Rotation CW/CCW
Product Type Actuator
Input Voltage 24V AC
Electrical Connection Type Screw Terminals
Number of Auxiliary Switches 0
Application Dampers, Zone Valves, VAV Boxes

Description

Actuator, Valve Application Damper, Signal Type Floating Point with Timeout, On/Off, Rated Torque 18 in-lb, Input Voltage 24V AC, Electrical Connection Type Screw Terminals, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP42, Spring Return Non-Spring Return, Time to Close 30 sec, Shaft Type Self-Centering Clamping, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F
