Shop All Valve Actuators
Johnson Controls

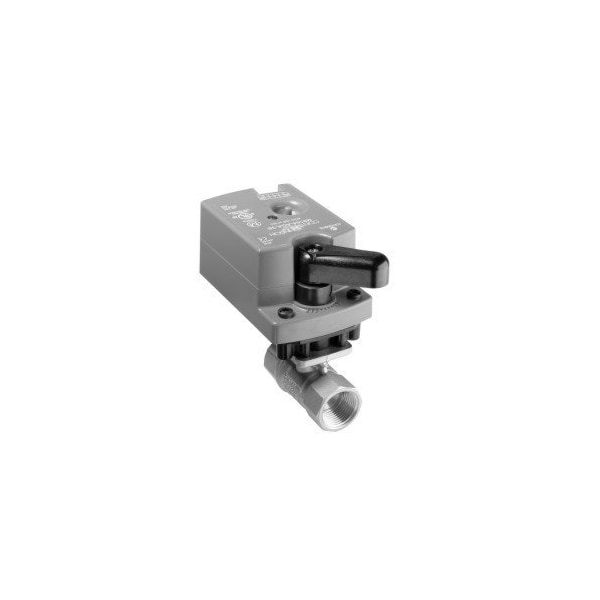

Electric Valve Actuator, Floating, 24V

product price: $131.68
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24V AC
  • Signal Type Floating
  • Torque 35 in-lb
  • Cycle Time 60 sec
  • Ambient Temp. Range -4 Degrees to 140 Degrees F
See all product information

Product Information

Dimensions

Height 2 45/64 in
Depth 5 1/2 in
Width 2 13/16 in
Overall Width 2 13/16 in
Overall Height 2 11/16 in
Stroke Length Not Rated
Overall Depth 5 1/2 in

Details

Item Electric Ball Valve Actuator
Voltage 24V AC
Signal Type Floating
Torque 35 in-lb
Cycle Time 60 sec
Ambient Temp. Range -4 Degrees to 140 Degrees F
Ball Valve Product Group Actuated
Standards CCN XAPX File 27734 Plenum Rated, NEC Section 300.22.(c), UL 2043
Enclosure Rating NEMA 1
Electrical Connections Screw Terminals
Power Consumption 3 VA
For Use With JCI VG1000 Ball Valve
Includes M3 Screw Terminals
Type of Actuator Non-Spring Return
Stroke Deg. 93
Mounting Direct Mount
Product Type Electric Ball Valve Actuator
Application Air Conditioning, Heating, Ventilation
Operating Temperature - Maximum 140 Degrees F
Return Action Non-Spring Return
Housing Material Plastic
Compatible Brand Johnson Controls
Number of Auxiliary Switches 0
Compatible Series VG1000
Frequency 60 Hz
Compatible Manufacturer Model Number VG1241AD+9T4IGA, VG1241AE+9T4IGA, VG1241AF+9T4IGA, VG1241AG+9T4IGA, VG1241AL+9T4IGA, VG1241AN+9T4IGA, VG1241BG+9T4IGA, VG1241BL+9T4IGA, VG1241BN+9T4IGA, VG1241CL+9T4IGA, VG1241CN+9T4IGA, VG1241CP+9T4IGA
Compatible Valve Action Normally Closed, Normally Open
Compatible Valve Body Pattern Three-Way, Two-Way
Operating Temperature - Minimum -4 Degrees F
Stroke Degree 93 Degrees
NEMA Rating 1
Mounting Style Direct Mount
Control Signal Floating Point, On/Off
Electrical Connection Type Screw Terminals

Description

Electric Ball Valve Actuator, Application Air Conditioning, Heating, Ventilation, Compatible Brand Johnson Controls, Compatible Manufacturer Model Number VG1241AD+9T4IGA, VG1241AE+9T4IGA, VG1241AF+9T4IGA, VG1241AG+9T4IGA, VG1241AL+9T4IGA, VG1241AN+9T4IGA, VG1241BG+9T4IGA, VG1241BL+9T4IGA, VG1241BN+9T4IGA, VG1241CL+9T4IGA, VG1241CN+9T4IGA, VG1241CP+9T4IGA, Compatible Series VG1000, Compatible Valve Action Normally Closed, Normally Open, Compatible Valve Body Pattern Three-Way, Two-Way
