This item is Discontinued.

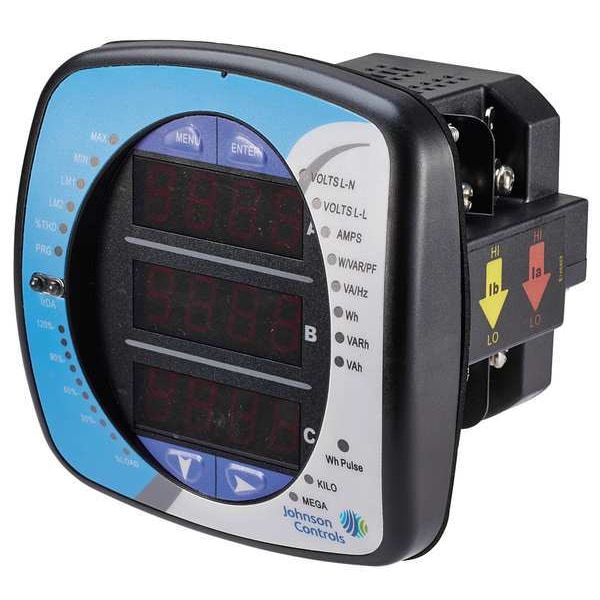

Johnson Controls Energy Meter, LED, 90/265VAC Wye/Delta EM-1460-00-DB00

Energy Meter, LED, 90/265VAC Wye/Delta (Discontinued)

  • Mfr # EM-1460-00-DB00
  • Zoro # G2838486
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EM-1460-00-DB00
Zoro #
G2838486
UPC #
-
Country of Origin
United States

Dimensions

Width
4.85 in
Depth
4.25 in
Height
4.85 in
Overall Depth
4.25 in
Overall Width
4.85 in
Overall Height
4.85 in

Details

Item
Power Meter
Amps
5 A
Hz
60
Accuracy
+/-0.50%
Meter Range
20 to 721V AC Delta, 23 to 416V AC Wye
Measures
Current, Energy, Frequency, Power, Voltage
Enclosure Rating
NEMA 12
Mounting
Panel
Phase
Three
Input Voltage
20 to 416V (Line to Neutral), 20 to 721V (Line to Line)
Display
LED
Interface
MODBUS
Features
BACnet IP
Operating Temp. Range
-4 Degrees to 158 Degrees F
Standards
ANSI (IEEE) C37.90.1 Surge Withstand, ANSI C12.20 (0.5% Accuracy), ANSI C62.41 (Burst), EN61000-6-2 Immunity for Industrial Environments: 2005, EN61000-6-4 Emission Standards for Industrial Environments: 2007, EN61326-1 EMC Requirements: 2006, IEC 62053-22 (0.5% Accuracy), UL 61010-1, UL E363785
Voltage Output Reading - Maximum
600 V
Operating Temperature - Maximum
158 Degrees F
Frequency
60 Hz
Current
5 A
Includes Datalogging
No Datalogging
Operating Temperature - Minimum
-4 Degrees F
Current Output Reading - Minimum
0.15 A
Voltage Output Reading - Minimum
69 V
NEMA Enclosure Rating
12
Communication Method
Modbus

Description

Power Meter, LED Display, Mounting Panel, Input Voltage 20 to 416V (Line to Neutral), 20 to 721V (Line to Line), Amps 5 A, +/-0.50 Percent Accuracy, Measures Current, Energy, Frequency, Power, Voltage, Enclosure Rating NEMA 12, Hz 60, Meter Range 20 to 721V AC Delta, 23 to 416V AC Wye, Phase Three, Operating Temp. Range -4 Degrees to 158 Degrees F, Height 4.85 in, Width 4.85 in, Depth 4.25 in
