This item is Discontinued.

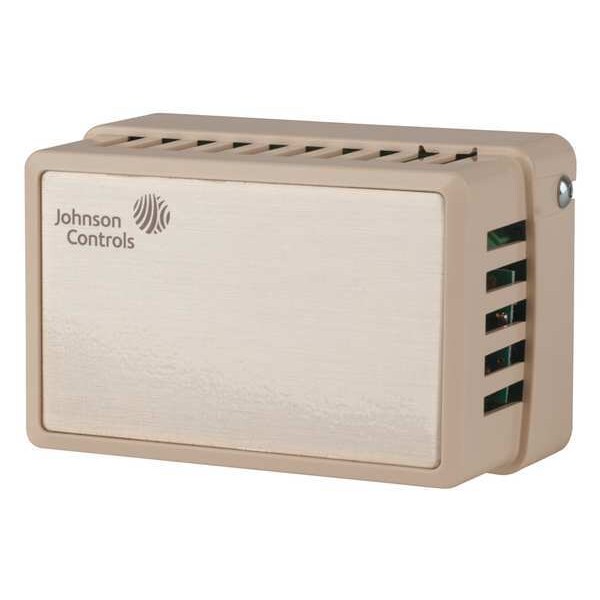

Johnson Controls Humidity Sensor, Wall, Tan HE-67S3-0N0BT

Humidity Sensor, Wall, Tan (Discontinued)

  • Mfr # HE-67S3-0N0BT
  • Zoro # G4294437
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HE-67S3-0N0BT
Zoro #
G4294437
UPC #
078502874375
Country of Origin
Mexico

Dimensions

Height (In.)
2 in
Depth (In.)
1 1/2 in
Width (In.)
1 1/2 in
Overall Width
3 1/8 in
Overall Depth
1 13/16 in
Overall Height
2 1/8 in

Details

Item
Humidity Sensor
Material
Plastic
Color
Tan
Voltage
14 V DC, 20 V AC, 30 V AC, 30 V DC
For Use With
C450RCN-1C
Type
Wall
Operating Temp. Range (F)
-40 to 150
Maximum Humidity
100 %
Electrical Connection Type
Hardwired
Temperature Accuracy
+/-1 Degrees F at 70 Degrees F
Humidity Accuracy
+/-3% RH for 20% to 80% RH at 77 Degrees F; +/-5% RH for 10% to 20% and 80% to 90% RH at 77 Degrees F
Minimum Operating Temperature
32 Degrees F
Application
Humidity, Temperature
Frequency
50 Hz, 60 Hz
Output Signal
0 to 5V DC or 0 to 10V DC, 1,000 ohm Maximum Load
Includes Temperature Sensor
Yes
Maximum Temperature
140 Degrees F
Indoor/Outdoor
Indoor
Minimum Humidity
0 %
Temperature Differential
+/-1 Degrees F at 70 Degrees F
Corrosion Resistant
Yes
Compatible Manufacturer Model Number
C450RCN-1C
Standards
94-5V Flammability Rated Per UL 94, Australia/NZ Emissions Compliant, C-Tick Mark, CCN PAZX, CCN PAZX7, CE Mark, EMC Directive 2004/108/EC, Energy Management Equipment, File E107041, Signal Equipment, UL Listed, Under CAN/CAS C22.2 No. 205, Under UL 916
Maximum Operating Temperature
140 Degrees F
Minimum Temperature
32 Degrees F
Accessory Type
Humidity Sensor

Description

Humidity Sensor, Application Humidity, Temperature, Overall Height 2 1/8 in, Overall Width 3 1/8 in, Standards 94-5V Flammability Rated Per UL 94, Australia/NZ Emissions Compliant, C-Tick Mark, CCN PAZX, CCN PAZX7, CE Mark, EMC Directive 2004/108/EC, Energy Management Equipment, File E107041, Signal Equipment, UL Listed, Under CAN/CAS C22.2 No. 205, Under UL 916
