Shop JOHNSON CONTROLS

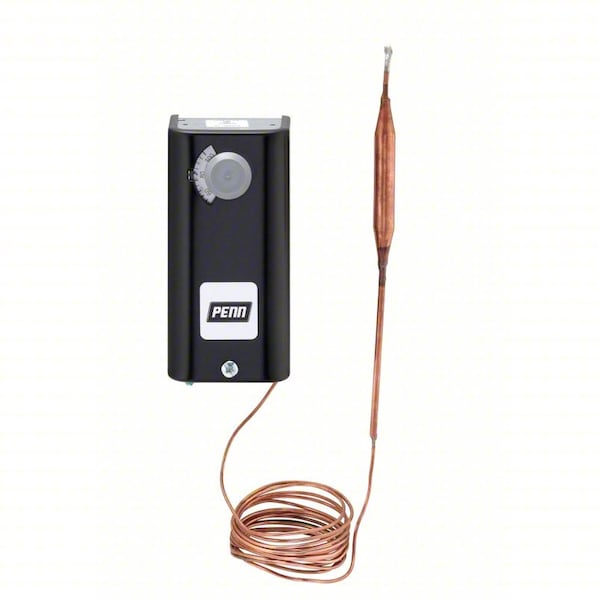

Line Voltage Mechanical Thermostat, Heat Only, 100 to 240F, Concealed Dial, 24 to 277V AC, 1C, 1H

  • Mfr # A19ADB-1C

  • Zoro # G5084091

product price:  $155.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Hot Water Heating Controls
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
Number of Cooling Stages
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
A19ADB-1C
Zoro #
G5084091
UPC #
-
Country of Origin
Mexico

Dimensions

Sensing Bulb Dia.
3/8 in
Capillary Length
72 in
Overall Height
4-3/8 in
Overall Width
2-1/8 in
Bulb Length
3 1/2 in
Overall Depth
1-7/8 in
Capillary Length/Bulb Diameter
6 ft Capillary, 3 1/2 in x 3/8 in Bulb
Bulb Diameter
3/8 in

Details

Compatible System Type
Hot Water Heating Controls
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
100 to 240 Degrees F
Control Type
Concealed Dial
Voltage
24 to 277V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Locked Rotor Amps @ 120V
96 A
Inductive Amps @ 120V
16 A
Resistive Amps @ 208VAC
9.2 A
Number of Switches
1
Contact Rating Resistive @ 240V
8 A
Enclosure Type
Galvanized/Steel
Inductive Amps @ 208V
9.2 A
Locked Rotor Amps @ 240V
48 A
Sensor Type
Hydraulic Capillary Bulb (Copper)
Standards
CSA LR948/4813 02, UL E6688
Contact Rating Resistive @ 277V
6.9 A
Contact Rating Resistive @ 120V
16 A
Includes
Remote Sensing Bulb
Inductive Amps @ 240V
8 A
Number of Relay Inputs
1
Thermostat Type
Indoor Single-Stage Controls
For Use With
HVAC/R Applications
Number of Relay Outputs
1
Maximum Control Temperature
240 Degrees F
Differential Type
Manual Reset
Temperature Scale
Fahrenheit/Celsius
Minimum Control Temperature
100 Degrees F
Number of Poles
1
Temperature Differential
Manual Reset
Electrical Connection Type
Hardwired, Screw Terminal
Temperature Sensitivity
+/-4 Degrees F
Stages
1H/1C
Sensor Location
Remote
Full Load Amps @ 240V AC
8 A
Enclosure NEMA Rating
1
Full Load Amps @ 120V AC
16 A
Pilot Duty Rating
125 VA @ 24 to 600V AC
Maximum Operating Temperature
290 Degrees F
Contact Rating
120V AC, 240V AC
Enclosure Color
Gray
Minimum Operating Temperature
-35 Degrees F
Housing Material
Steel
Programming Capability
Not Programmable
Enclosure Material
Steel
Resistive Amps @ 208V AC
9.2 A

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPST, Thermostat Control Range 100 Degrees to 240 Degrees F, Thermostat Voltage 24 to 277VAC, Full Load Amps @ 120VAC 16A, Full Load Amps @ 240VAC 8A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating, Thermostat Item Line Voltage Mechanical Thermostat, Remote Sensing Bulb Included Yes, Switch Action Open on Rise, Number of Switches 1, Height 4-3/8 In., Width 2-1/8 In., Depth 1-13/16 In.
