Shop JOHNSON CONTROLS

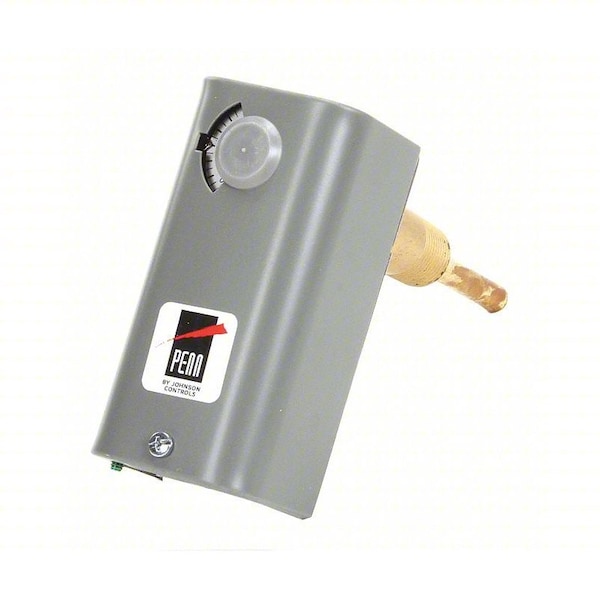

Line Voltage Mechanical Thermostat, Heat Only, 30 to 50F, Screwdriver, 24 to 277V AC, 1C, 1H

  • Mfr # A19AAD-5C

  • Zoro # G5063012

product price:
$
161.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Hot Water Heating Controls
Application
Heat Only
Switch Action
Close on Rise
Switch Type
SPST
Number of Cooling Stages
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A19AAD-5C
Zoro #
G5063012
UPC #
-
Country of Origin
Mexico

Dimensions

Capillary Length
72 in
Sensing Bulb Dia.
3/8 in
Overall Width
2-1/8 in
Bulb Length
2 5/8 in
Overall Height
4-3/8 in
Overall Depth
1-7/8 in
Capillary Length/Bulb Diameter
6 ft Capillary, 2 5/8 in x 3/8 in Bulb
Bulb Diameter
3/8 in

Details

Compatible System Type
Hot Water Heating Controls
Application
Heat Only
Switch Action
Close on Rise
Switch Type
SPST
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
30 to 50 Degrees F
Control Type
Screwdriver
Voltage
24 to 277V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Sensor Type
Hydraulic Capillary Bulb (Copper)
Contact Rating Resistive @ 277V
10 A
Contact Rating Resistive @ 120V
10 A
Contact Rating Resistive @ 240V
10 A
Inductive Amps @ 120V
6 A
Enclosure Type
Galvanized/Steel
Locked Rotor Amps @ 120V
36 A
Inductive Amps @ 208V
3.4 A
Number of Switches
1
Locked Rotor Amps @ 240V
18 A
Includes
Remote Sensing Bulb
Resistive Amps @ 208VAC
10 A
Standards
CSA LR948/4813 02, UL E6688
Inductive Amps @ 240V
3 A
Number of Relay Outputs
1
Number of Relay Inputs
1
For Use With
HVAC/R Applications
Thermostat Type
Indoor Single-Stage Controls
Features
Wide Temperature Ranges Available Constant Differential Throughout the Entire Range, Variety of Sensing Element Styles, Unaffected by Cross-Ambient Conditions
Electrical Connection Type
Hardwired, Screw Terminal
Stages
1H/1C
Number of Poles
1
Minimum Operating Temperature
-35 Degrees F
Temperature Scale
Fahrenheit/Celsius
Full Load Amps @ 120V AC
6 A
Maximum Operating Temperature
190 Degrees F
Pilot Duty Rating
125 VA @ 24 to 277V AC
Temperature Differential
2.5 Degrees F
Temperature Sensitivity
+/-2 Degrees F
Differential Type
Fixed
Minimum Control Temperature
30 Degrees F
Contact Rating
120V AC, 240V AC
Enclosure Color
Gray
Maximum Control Temperature
50 Degrees F
Sensor Location
Remote
Enclosure NEMA Rating
1
Full Load Amps @ 240V AC
3 A
Changeover Type
Manual
Programming Capability
Not Programmable
Housing Material
Steel
Enclosure Material
Steel
Resistive Amps @ 208V AC
10 A

Description

Remote-Control,H/C,2 5/8in Length
