Shop JOHNSON CONTROLS

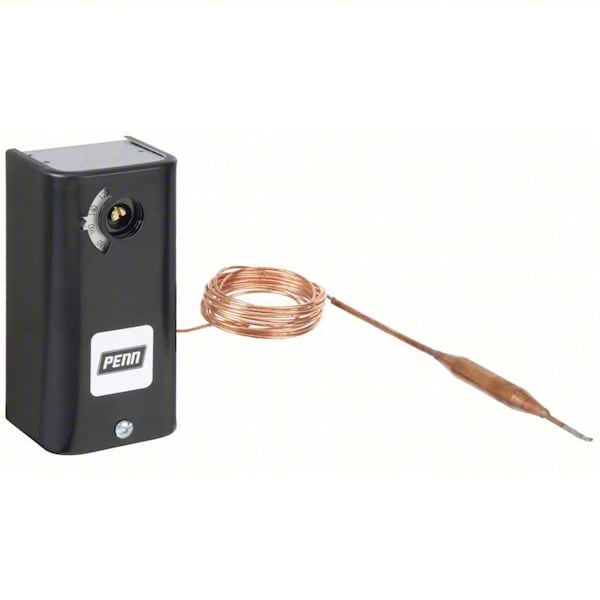

Line Voltage Mechanical Thermostat, Heat or Cool, 100 to 240F, Screwdriver, 120 to 277V AC, 1C, 1H

  • Mfr # A19AAC-9C

  • Zoro # G5063003

product price:  $178.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Hot Water Heating Controls
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
A19AAC-9C
Zoro #
G5063003
UPC #
-
Country of Origin
Mexico

Dimensions

Capillary Length
72 in
Sensing Bulb Dia.
3/8 in
Overall Width
2-1/8 in
Overall Height
4-3/8 in
Overall Depth
1-7/8 in
Bulb Length
3 5/8 in
Capillary Length/Bulb Diameter
6 ft Capillary, 3 1/2 in x 3/8 in Bulb
Bulb Diameter
3/8 in

Details

Compatible System Type
Hot Water Heating Controls
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
100 to 240 Degrees F
Control Type
Screwdriver
Voltage
120 to 277V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Standards
CSA LR948/4813 02, UL E6688
Sensor Type
Hydraulic Capillary Bulb (Copper)
Resistive Amps @ 208VAC
22 A
Locked Rotor Amps @ 240V
48 A
Inductive Amps @ 240V
8 A
Includes
Remote Sensing Bulb
Contact Rating Resistive @ 240V
22 A
Enclosure Type
Galvanized/Steel
Inductive Amps @ 120V
16 A
Contact Rating Resistive @ 277V
22 A
Contact Rating Resistive @ 120V
22 A
Inductive Amps @ 208V
9.2 A
Locked Rotor Amps @ 120V
96 A
Number of Switches
1
Number of Relay Inputs
1
Thermostat Type
High-Range Indoor Single-Stage Controls
Number of Relay Outputs
1
For Use With
HVAC/R Applications
Features
Line Voltage Components Switch Box Mounted Which Provides Isolation of Electrical Circuit From Sensing Element, Mounting Plate Allows Easy Mounting and Wiring without Removing the Cover, Enclosed Pennswitch Provides Dust Protection for Contacts
Differential Type
Fixed
Full Load Amps @ 120V AC
16 A
Pilot Duty Rating
125 VA @ 24 to 600V AC
Maximum Control Temperature
240 Degrees F
Stages
1H/1C
Temperature Differential
6 Degrees F
Minimum Operating Temperature
-35 Degrees F
Changeover Type
Manual
Sensor Location
Remote
Temperature Scale
Fahrenheit/Celsius
Enclosure Color
Gray
Contact Rating
120V AC, 208V AC, 240V AC
Temperature Sensitivity
+/-2 Degrees F
Minimum Control Temperature
100 Degrees F
Contact Type
Snap Action
Number of Poles
1
Full Load Amps @ 240V AC
8 A
Enclosure NEMA Rating
1
Electrical Connection Type
Hardwired, Screw Terminal
Maximum Operating Temperature
290 Degrees F
Programming Capability
Not Programmable
Housing Material
Steel
Resistive Amps @ 208V AC
22 A
Enclosure Material
Steel

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 100 Degrees to 240 Degrees F, Thermostat Voltage 120 to 277VAC, Full Load Amps @ 120VAC 15A, Full Load Amps @ 240VAC 8A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Thermostat Item Line Voltage Mechanical Thermostat, Remote Sensing Bulb Included Yes, Switch Action Open/Close on Rise, Number of Switches 1, Differential 6 Degrees F, Height 4-3/8 In.
