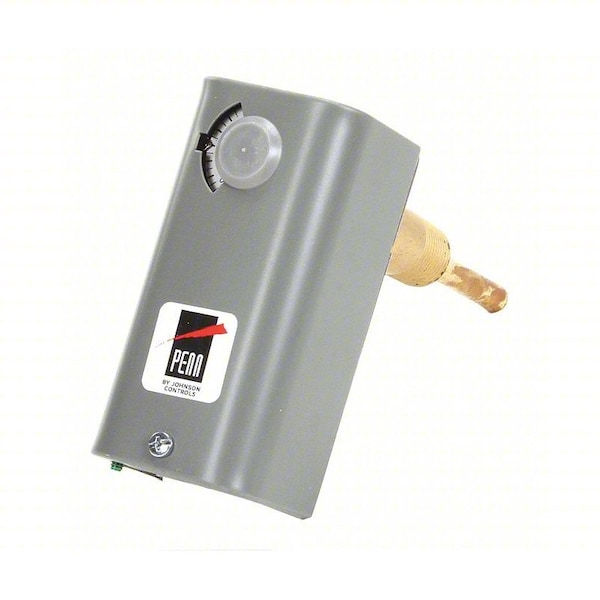

Line Voltage Mechanical Thermostat, Heat or Cool, 30 to 80F, Knob, 24 to 277V AC, 1C, 1H

  • Mfr # A19ABC-39C
  • Zoro # G7179566

product price:
$
164.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Hot Water Heating Controls Well Immersion LIT-125025
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
A19ABC-39C
Zoro #
G7179566
UPC #
-
Country of Origin
Mexico
Compatible System Type
Hot Water Heating Controls Well Immersion LIT-125025
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
30 to 80 Degrees F
Control Type
Knob
Voltage
24 to 277V AC
Mounting
Immersion Well
Item
Line Voltage Mechanical Thermostat
Sensor Type
Well
Locked Rotor Amps @ 120V
96 A
Contact Rating Resistive @ 277V
22 A
Number of Switches
1
Inductive Amps @ 120V
16 A
Locked Rotor Amps @ 240V
48 A
Contact Rating Resistive @ 240V
22 A
Contact Rating Resistive @ 120V
16 A
Inductive Amps @ 208V
9.2 A
Inductive Amps @ 240V
8 A
Standards
CSA LR948/4813 02, UL E6688
Enclosure Type
Compact
Resistive Amps @ 208VAC
22 A
For Use With
Hot Water Boilers
Number of Relay Inputs
1
Number of Relay Outputs
1
Thermostat Type
Line Voltage Mechanical Thermostat
Includes
Remote Sensing Bulb
Contact Rating
120V AC, 240V AC, 277V AC
Minimum Control Temperature
30 Degrees F
Enclosure NEMA Rating
1
Temperature Sensitivity
+/- 5 Degrees F
Temperature Scale
Fahrenheit
Electrical Connection Type
Screw Terminal
Maximum Operating Temperature
140 Degrees F
Enclosure Color
Gray
Number of Poles
1
Differential Type
Adjustable
Full Load Amps @ 240V AC
8 A
Pilot Duty Rating
125 A @ 24/600V AC
Temperature Differential
6 Degrees F to 24 Degrees F
Sensor Location
Remote
Full Load Amps @ 120V AC
16 A
Maximum Control Temperature
80 Degrees F
Programming Capability
Not Programmable
Housing Material
Steel
Enclosure Material
Steel
Color
Gray
Wire Color
Gray
Compatible Product Type
Hot Water Boilers

Dimensions

Sensing Bulb Dia.
3/8 in
Overall Width
2-1/8 in
Overall Height
4-3/8 in
Sensor Diameter
3/8 in
Well Connection Size
1/2 in NPT
Overall Depth
1-13/16 in
Sensor Length
3 1/16 in
Bulb Length
3 1/16 in

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 30 Degrees to 80 Degrees F, Thermostat Voltage 24 to 277VAC, Full Load Amps @ 120VAC 16A, Full Load Amps @ 240VAC 8A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Thermostat Item Line Voltage Mechanical Thermostat, Remote Sensing Bulb Included Yes, Switch Action Open/Close on Rise, Number of Switches 1, Differential 6 Degrees to 24 Degrees F
